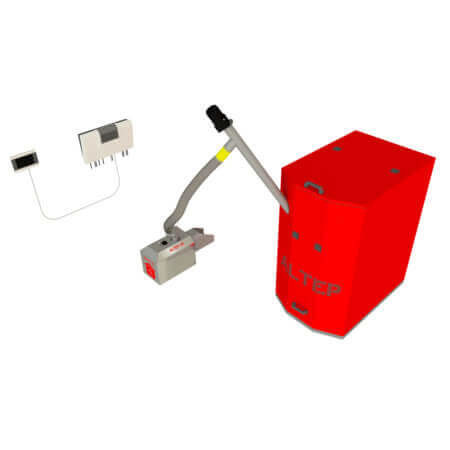

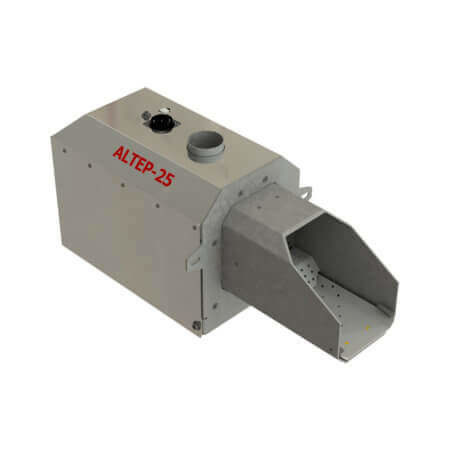

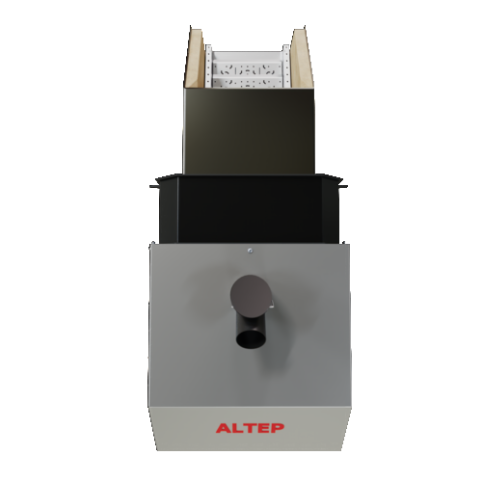

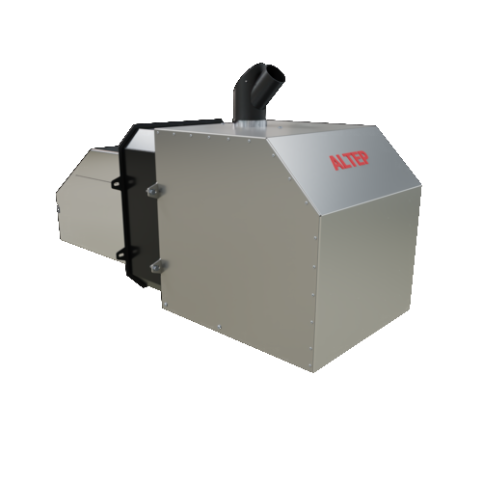

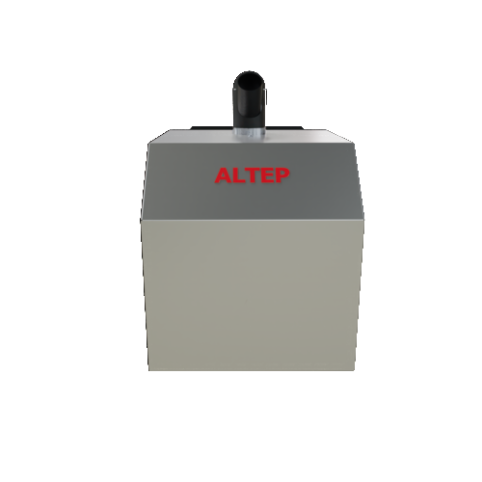

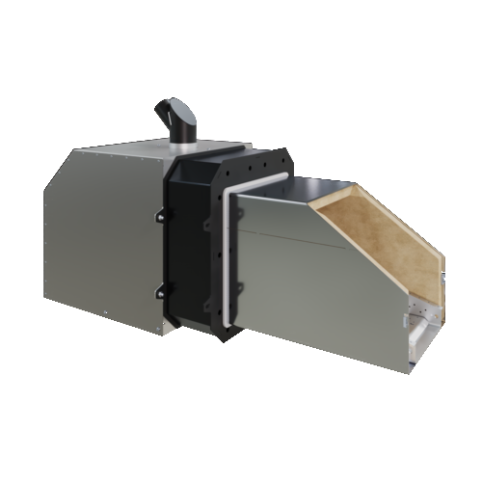

This is a high-tech equipment designed for dosed automatic fuel supply and the most efficient combustion of wood pellets or agro-pellets. The device has an automatic ignition function and a mechanism for self-cleaning the burner from slag and ash.

The presence of a gravity backdraft valve and combustion control sensors makes the burner convenient and safe to operate. Power range:20-1500 kW

  • Full automation - ignition, extinguishing and cleaning of the burner is carried out automatically;
  • Safety of operation - protects the boiler from boiling of the coolant;

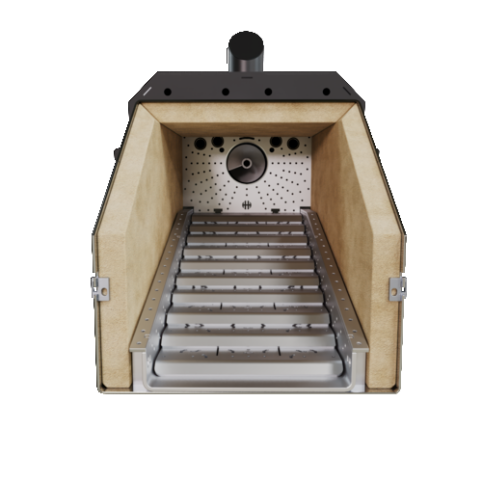

  • Self-cleaning function of the burner;
  • Compact design that allows for easy installation of the burner in the boiler door;
  • Ability to remotely start, extinguish and control operation via GSM and Wi-Fi (optional);
  • Ability to control other mechanisms and components of heat supply systems;
  • Automatic resumption of operation after power failures.
Warranty
1 year
EFFICIENCY
from-98%
Power
20-1500 kW
Self-cleaning of the grate
Auto-ignition
GSM
Wi-Fi module
Environmental friendliness
Automatic fuel supply
specifications
Dimensions
Description
Reviews (1)

Burner characteristics 20-150 kW

No. p/n Parameters. Units of measurement
я		 Power
1 Rated heat output kW 20 30 40 50 65 80 100 150
2 Minimum thermal
power		 kW 8 10 15 18 25 30 35 50
3 Maximum electrical power consumption
power		 W 400 400 400 425 425 470 520 615
4 Operating electrical power consumption
power		 W 92 92 92 125 125 165 220 215
5 Supply voltage ~V./ Hz. 220 / 50
6 Weight of the burner kg 12,7 13,1 13,6 22,2 24,6 35,6 67,3 81
7 Gross weight
set		 kg 39,5 39,9 40,4 49,0 52,0 71,0 120,0 145,0
8 Connectors
pins		 М 8
9 Screw length м 3
10 Maximum
amount of fuel		 kg/hour 5 7,5 10 12 16,2 20 25 37,5

Characteristics of the burner 200-400 kW

No. Parameters. Units
measurement		 Power
1 Nominal heat output
power		 kW 200 250 300 400
2 Minimum thermal
power		 kW 50 60 80 100
3 Maximum
electrical power consumption		 W 660 660 770 950
4 Working electric
power consumption		 W 350 350 470 650
5 Supply voltage ~V./ Hz. 220 / 50
6 Weight of the burner kg 127 130 161 174
7 Gross weight of the set kg 190 194 230 243
8 Connecting pins М 8
9 Screw length м 3
10 Maximum amount of fuel kg/hour 50 62 75 100

Burner characteristics 500-800 kW

No. Parameters. Units
measurement		 Power
1 Nominal heat output
power		 kW 500 600 800
2 Minimum thermal
power		 kW 100
3 Maximum electrical
power consumption		 W 1000
4 Working electric
power consumption		 W 690
5 Supply voltage ~V./ Hz. 220 / 50
6 Weight of the burner kg 227
7 Gross weight of the set kg 350
8 Connecting pins M 10 ÷ M12
9 Screw length м 3
10 Maximum number of
fuels		 kg/hour 120

Characteristics of the burner 1000-1500 kW

No. Parameters. Units
measurement		 Power
1 Nominal heat output
power		 kW 1000 1500
2 Minimum thermal
power		 kW 300 450
3 Maximum electrical
power consumption		 W 2000 2300
4 Working electric
power consumption		 W 1340 1600
5 Supply voltage ~V./Hz. 220 / 50
6 Weight of the burner kg 512 762
7 Gross weight of the set kg 620 900
8 Connecting pins M 18 ÷ M20
9 Screw length м 3 ÷ 5
10 Maximum number of
fuels		 kg/hour 250 370

Burner dimensions 20-150 kW

Burner Power range, kW Power consumption in operating mode, W Fuel A,
mm		 B,
mm		 C,
mm		 D,
mm		 d, mm H,
mm		 E, mm F, mm G, mm
Altep-20 4-20 92 The pellets are 6-8 mm, 259 227 260 154 58 - 125 520 197
Altep-30 6-30 92 259 227 260 154 58 - 125 550 217
Altep-40 8-40 92 259 227 260 154 58 - 135 590 237
Altep-50 10-50 125 310 271 295 152 61 - 150 700 297
Altep-65 12-65 125 310 298 295 182 90 - 180 730 317
Altep-80 20-80 163 360 326 310 200 45 136 200 860 242
Altep-100 25-100 218 440 408 400 270 34 200 270 1000 290
Altep-150 40-150 313 440 408 400 290 42 220 290 1120 390

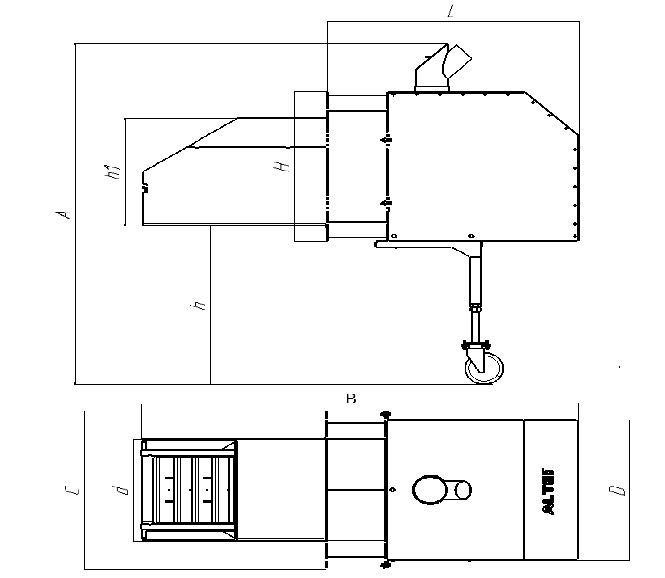

Burner dimensions 200-400 kW

Power Dimensions in mm.
A B C D d H h h1 L
200 1100 1142 510 453 330 480 510 346 660
250 1100 1142 530 473 350 480 510 346 660
300 1160 1342 600 532 410 510 513 376 830
400 1170 1372 640 574 450 584 513 430 86

Burner dimensions 500-800 kW

Power Dimensions in mm.
A B C D d d1 H h h1 L
500 1295 1410 700 635 510 470 617 590 480 900

Burner dimensions 1000-1500 kW

Power Dimensions in mm.
A B C D d d1 H h h1 L
1500 1680 2960 1260 1020 732 920 1065 564 750 1158
1000 1665 2960 945 945 660 920 885 672 650 1064
Burner TM Altep - is an automatic, high-tech torch-type equipment. The main purpose of the burner is the efficient combustion of pellets. Power range:20-1500 kW.
The burner independently regulates the supply of fuel and air, depending on the need for heat. The device has an automatic ignition function and a self-cleaning mechanism for slag and ash generated by fuel combustion. The operation of the burner is programmed in such a way that the fuel is supplied to the combustion chamber in a small amount. This ensures the durability of the device even under variable load conditions.
