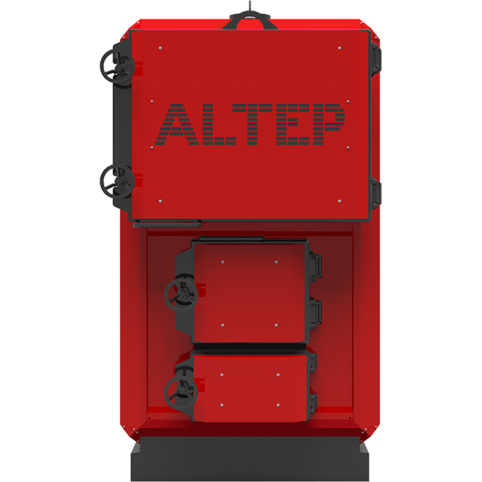

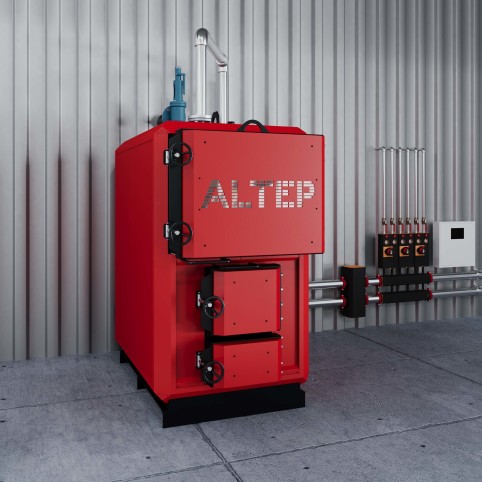

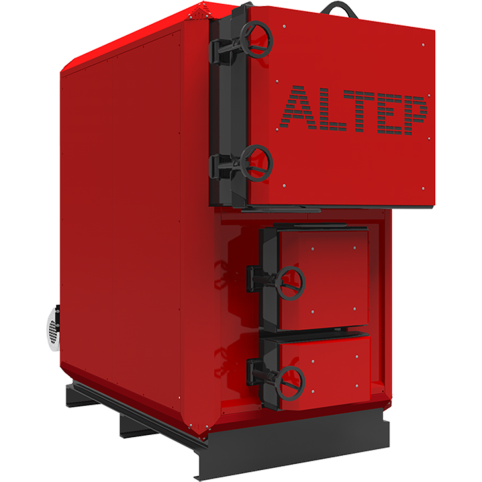

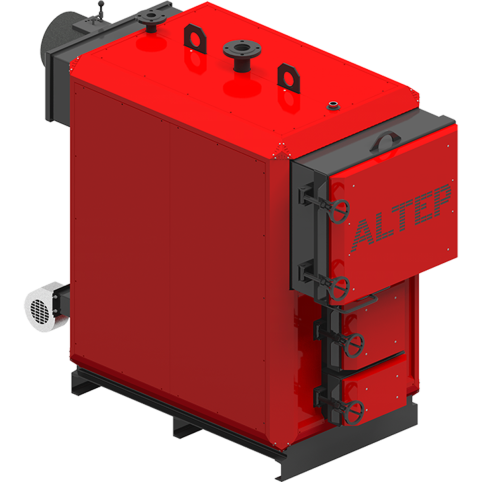

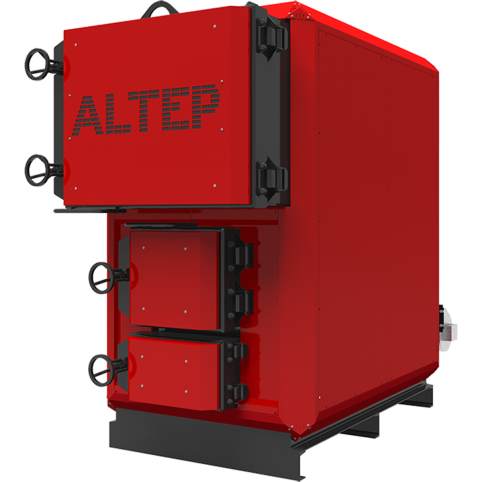

Boiler MAX Boiler MAX - [2] Boiler MAX - [3] Boiler MAX - [4] Boiler MAX - [5] Boiler MAX - [6]
Boiler MAX - [1]

Solid fuel boiler MAX

Customer Reviews: (1)

Industrial solid fuel long-burning boilers with manual fuel loading and convection part of the heat-tube type, which ensures the most efficient heat transfer. The cylindrical shape of the heat exchanger ensures its durability and working pressure up to3 bar and allows the installation of boilers of the typeMAX in heating systems with a high level of heat transfer fluid pressure.

  • Durability of the boiler - made of high-quality steel, 6-8 mm thick;
  • Large furnace chamber;
  • Reliable sealed doors with double insulation, which ensures safe operation and minimizes heat loss;
  • High working pressure of the coolant;
  • Possibility to adjust the air supply, depending on the type of fuel;
  • Compact size with high capacity;
The period between fuel loading
8-24 h
Fuel
firewood, wood waste, coal, sawdust and peat briquettes, peat
Warranty
3 years
Door
70 mm double insulation
Volumetric loading chamber
Power
95-800 kW
EFFICIENCY
from 86%
Metal thickness
6-8 mm
specifications
Dimensions
Description
Reviews (1)
Parameter Unit. Altep Max cauldron
Rated power of the boiler kW 95 150 200 250 300 400 500 600 700 800
Heat exchanger area м2 8,1 12,4 15,5 21,8 24,3 25,8 29,5 36,0 42,2 47,5
Firebox dimensions
depth mm 940 1100 1290 1410 1410 1410 1550 1820 2280 2280
volume dm3 240 280 390 500 560 650 790 920 1100 1750
Dimensions of the loading door
Height mm 350 350 350 400 400 400 430 430 430 430
Width mm 400 400 400 500 500 500 600 600 600 600
Water capacity of the boiler л 460 640 680 1160 1320 1320 1470 1800 2250 2400
Weight of the boiler without water kg 1200 1580 1690 2200 2450 2650 3000 3600 4200 5000
Fuel gas temperature Pa. 10-80 10-80 10-80 10-80 10-80 10-80 10-80 10-80 10-80 10-80
Flue gas temperature at the boiler outlet °C 240-290 240-290 240-290 240-290 240-290 240-290 240-290 240-290 240-290 240-290
Recommended minimum water temperature °C 58 58 58 58 58 58 58 58 58 58
Maximum water temperature °C 85 85 85 85 85 85 85 85 85 85
Nominal operating water pressure MPa 0,30 (0,60*) 0,30 (0,60*) 0,30 (0,60*) 0,30 (0,60*) 0,30 (0,60*) 0,30 (0,60*) 0,30 (0,60*) 0,30 (0,60*) 0,30 (0,60*) 0,30 (0,60*)
Test water pressure, max. MPa 0,45 0,45 0,45 0,45 0,45 0,45 0,45 0,45 0,45 0,45
Electricity consumption, no more than W 170 210 210 210 320 490 810 1110 1110 1110
Connecting (external) dimensions of the hog mm 245 298 298 348 398 398 448 498 548 548
Diameter of mains water connections (DN) mm 65(FL) 65(FL) 65(FL) 80(FL) 80(FL) 80(FL) 100(FL) 100(FL) 100(FL) 100(FL)
Recommended chimney parameters
cross-sectional area cm2 483 702 702 962 1256 1256 1520 1885 2380 2380
inner diameter mm 250 300 300 350 400 400 450 500 550 550
height (minimum allowable) м 9 10 14 14 11 15 16 16 16 17
Diameter of the pipe for the safety valve (DN) mm 40(FL) 40(FL) 40(FL) 50(FL) 50(FL) 2×50(FL) 2×50(FL) 2×50(FL) 2×50(FL) 2×50(FL)

*boilers with a nominal water pressure of 0.60 MPa are available on request

Dimensions of the Altep boilerMax

Parameter Unit of measurement
 Norm for Altep Max boilers
Overall dimensions of the boiler kW 95 150 200 250 300 400 500 600 700 800
B mm 1000 1000 1000 1230 1290 1290 1400 1410 1410 1550
H mm 1670 1860 1860 2020 2130 2230 2250 2280 2280 2520
H1 mm 1540 1740 1740 1900 2000 2110 2130 2160 2160 2340
H2 mm 1325 1485 1487 1617 1719 1786 1855 1912 1930 2125
H3 mm 320 320 320 375 385 385 380 385 385 385
L mm 2110 2340 2530 2670 2670 2670 2900 3250 3780 3780
L1 mm 1310 1470 1670 1780 1780 1780 1940 2210 2670 2670

Fire-tube industrial heating boilers of the typeMAX - Long-burning boilers with manual fuel loading are installed in transportable and stationary boiler houses with various heat supply systems. Power range: 95-800 kW.

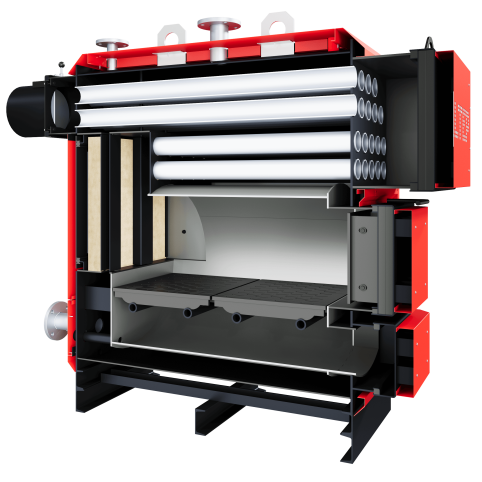

The boiler furnace is cylindrical in shape. The convection part of the boiler consists of a steel multi-pass heat exchanger, which heats up quickly, providing the most efficient heat transfer. The boiler is equipped with a cast-iron grate with a large area, which ensures uniform combustion of fuel of different humidity levels.

The boilers operate at a high pressure level - up to 3 bar, which allows them to be installed in heating systems with a high level of heat carrier pressure. The temperature in the boiler typeMAX is regulated by a microprocessor in the form of a PID control unit. It stabilizes the water temperature by smoothly reducing/increasing the fan speed. This eliminates the gases released during combustion and protects the heating system from boiling.
