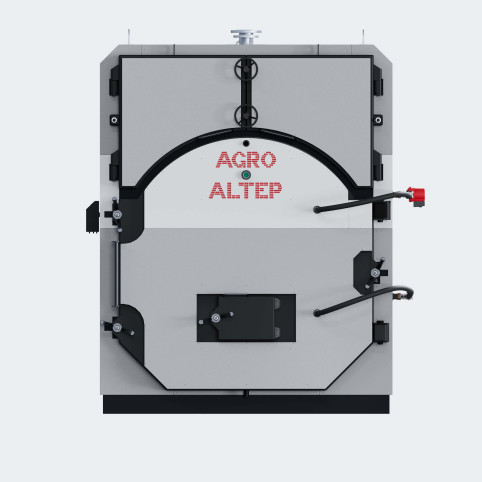

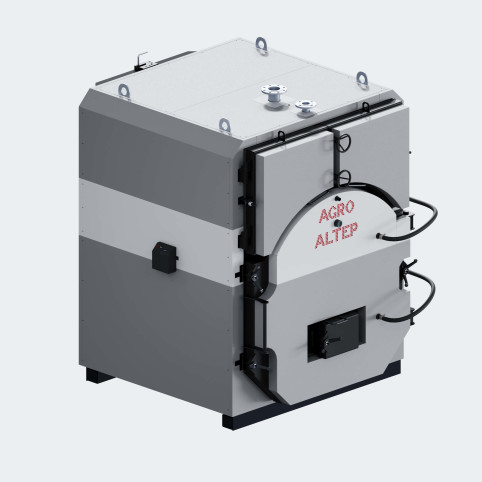

AGRO- is a fire-tube industrial solid fuel boiler with manual fuel loading, which can be installed in both stationary and transportable boiler houses with a closed heating system.
| Parameter | Unit of measurement | Norm for the Altep AGRO boiler |
| Rated power output | kW | 150 |
| Fuel | - | Straw, moisture content not exceeding 20 % |
| Heat exchanger area | м2 | 22 |
| EFFICIENCY | %</notranslate | 86 |
| Firebox dimensions | ||
| depth | mm | 1450 |
| diameter | mm | 1300 |
| volume | dm3 | 1900 |
| Water capacity of the boiler | л | 1500 |
| Boiler weight without water | kg | 2500 |
| The required flue gas flow | Pa. | 60-80 |
| Flue gas temperature at the boiler outlet | °C | 100-180 |
| Recommended minimum water temperature | °C | 58 |
| Maximum water temperature | °C | 85 |
| Nominal (maximum operating) water pressure | MPa | 0,30 |
| Test water pressure, max. | MPa | 0,50 |
| Electricity consumption | W | 270 |
| Connecting (outer diameter) dimensions of the hog | mm | 298 |
| Diameter of the direct and return water pipes (DN) | mm | 80 (FL) |
| Recommended chimney parameters | ||
| cross-sectional area | cm2 | 702 |
| inner diameter | mm | 300 |
| height (minimum allowable) | м | 10 |
| Diameter of the connections for the safety valve (DN) | mm | 50 (FL) |

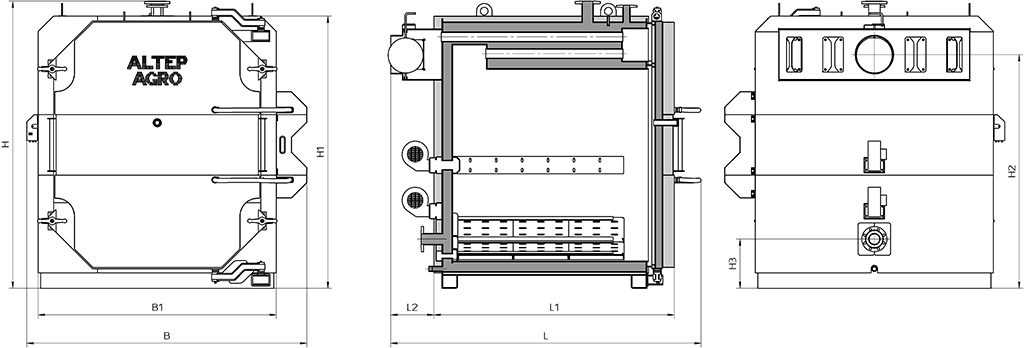

Overall dimensions of the Altep AGRO boiler
| Parameter | Unit of measurement | Norm for Altep AGRO boilers |
| Overall dimensions of the boiler | kW | 150 |
| B | mm | 2170 |
| B1 | mm | 1840 |
| H | mm | 2220 |
| H1 | mm | 2100 |
| H2 | mm | 1802 |
| H3 | mm | 380 |
| L | mm | 2400 |
| L1 | mm | 1860 |
| L2 | mm | 340 |
Boiler typeAGRO has a large firebox designed to load one or more small straw bundles and burn them.

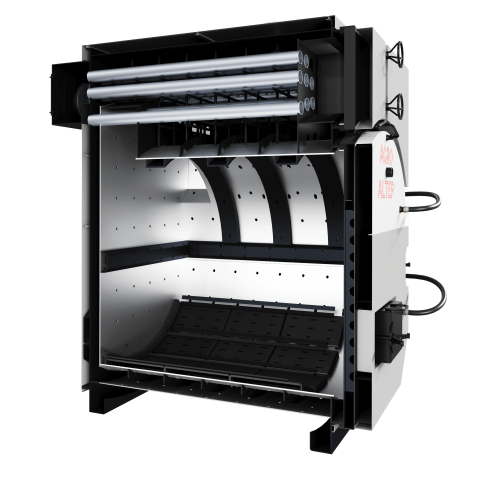

The temperature is regulated by a microprocessor in the form of an automation unit. It is able to stabilize the water temperature by smoothly reducing and increasing the number of revolutions of the discharge fan, which blows the boiler. The convection part of the boiler consists of two rows of flame tubes.
