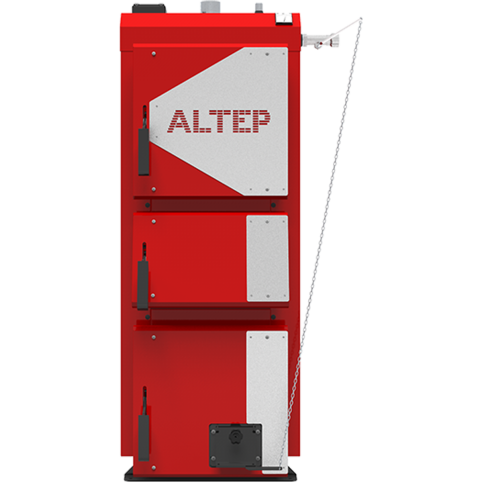

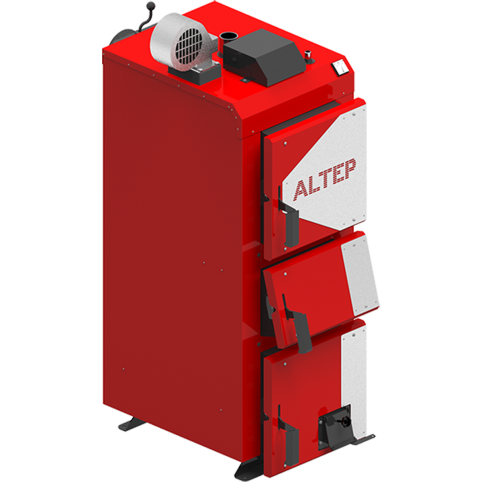

Boiler DUO UNI Plus Boiler DUO UNI Plus - [2] Boiler DUO UNI Plus - [3] Boiler DUO UNI Plus - [4] Boiler DUO UNI Plus - [5] Boiler DUO UNI Plus - [6] Boiler DUO UNI Plus - [7] Boiler DUO UNI Plus - [8] Boiler DUO UNI Plus - [9] Boiler DUO UNI Plus - [10]
Boiler DUO UNI Plus - [1]
https://youtu.be/Zaqidscjli8

Solid fuel boiler DUO UNI Plus

Customer Reviews: (3)

Universal long-burning boilers with high efficiency and the ability to operate both with manual loading and automatic fuel supply. The design of the heat exchanger is easy to maintain, and 6 mm thick steel confirms its reliability and durability.

The boilers are available in two versions:

  • DUO UNI Plus (kit) - a control unit with PID is installed
  • DUO UNI Plus (manual kit) - with a manual loading kit, adapted for installation of a control unit with PID
  • Easy installation of the pellet burner - without changing the boiler design, which ensures the fuel supply in automatic mode;
  • Boiler material - high quality steel, 6 mm thick;
  • Insulated doors with double insulation - for safe operation and minimization of heat loss;
  • It is equipped with a set of all necessary tools for maintenance;
  • Adapted to the installation of a mechanical draft regulator (15-40 kW);
  • Versatility - the ability to operate the boiler in manual fuel loading and auto-feed modes;
The period between fuel loading
8-24 h
Fuel
firewood, wood waste, coal, sawdust and peat briquettes, peat
Warranty
3 years
Door
70 mm double insulation
Metal thickness
6 mm
Volumetric loading chamber
EFFICIENCY
from 86%
Power
15-250 kW
specifications
Dimensions
Description
Reviews (3)
Parameter Unit of measurement. Universal boiler Altep Duo UNI PLUS
Rated power of the boiler kW 15 21 27 33 40 50 62 75
Heat exchanger area м2 1,9 2,3 2,6 3,1 3,6 4,5 5,0 6,0
Firebox dimensions
depth mm 400 450 450 520 600 600 650 750
volume dm3 68 77 97 122 140 220 260 307
Water capacity of the boiler л 84 92 105 120 135 170 194 220
Weight of the boiler without water kg 320 340 380 420 460 680 720 790
Flue gas temperature °C 100-180 100-180 100-180 100-180 100-180 100-180 100-180 100-180
Recommended minimum water temperature °C 58 58 58 58 58 58 58 58
Maximum water temperature °C 85 85 85 85 85 85 85 85
Nominal operating water pressure MPa 0,15 0,15 0,15 0,15 0,15 0,20 0,20 0,20
Electricity consumption, no more than W 85 85 85 85 105 160 160 160
External hog's wounds mm 159 159 178 178 219 248 248 248
Diameter of mains water connections (DN) mm 50 50 50 50 50 50 50 65(FL)
Recommended chimney parameters
cross-sectional area cm2 201 201 248 248 377 452 452 452
inner diameter mm 160 160 180 180 220 250 250 250
height (minimum allowable) м 5 5 5 5 6 6 6 7
Diameter of the fitting for the safety valve (DN) mm 15 15 15 15 15 20 20 20
Parameter Unit of measurement Universal boiler Altep Duo UNI PLUS
Overall dimensions of the boiler kW 15 21 27 33 40 50 62 75
B mm 610(680) 610(680) 660(730) 660(730) 660(730) 780 780 780
B1 mm 510 510 560 560 560 670 670 670
H mm 1645
(1490)		 1645
(1490)		 1645
(1490)		 1745
(1590)		 1780
(1590)		 1980 2030 2050
H1 mm 1425 1425 1475 1525 1525 1720 1770 1800
H2 mm 1270 1270 1310 1360 1340 1523 1573 1598
L mm 1000 1050 1050 1120 1200 1240 1290 1390
L1 mm 680 730 730 800 880 910 960 1060
D mm 159 159 178 178 219 248 248 248

*Dimensions in parentheses are for the Duo Uni boiler

Overall dimensions of the Altep Duo UNI 15-40 kW boiler

Overall dimensions of the Altep Duo UNI PLUS boiler 15-40 kW


Overall dimensions of the Altep Duo UNI PLUS boiler 50-62 kW

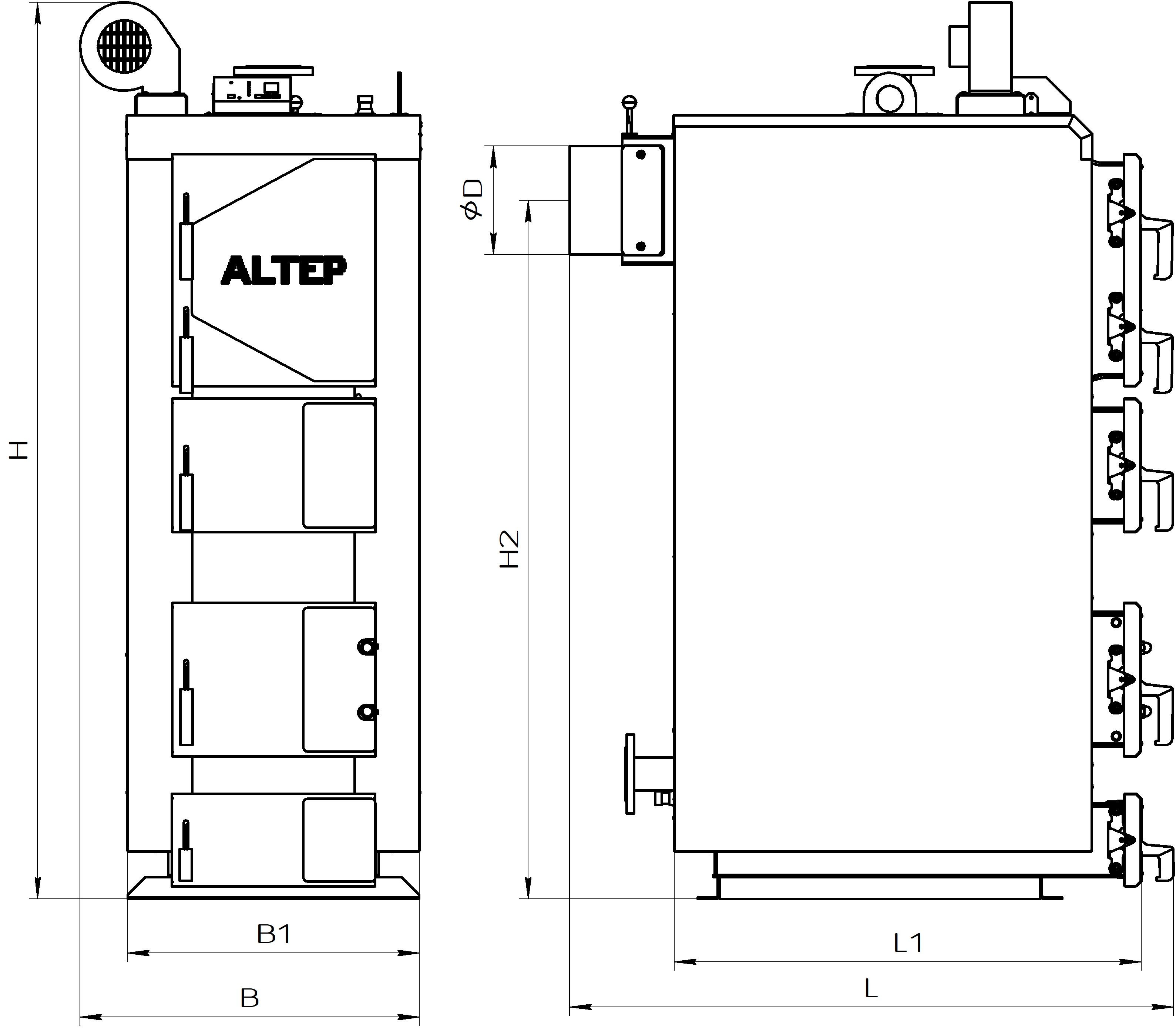

Overall dimensions of the Altep Duo UNI PLUS 75 kW boiler

Boilers of the typeDUO UNI Plus - solid fuel boilers of long-term combustion. The boilers are designed for heating of houses, utility and industrial premises. Power range:15-250 kW.

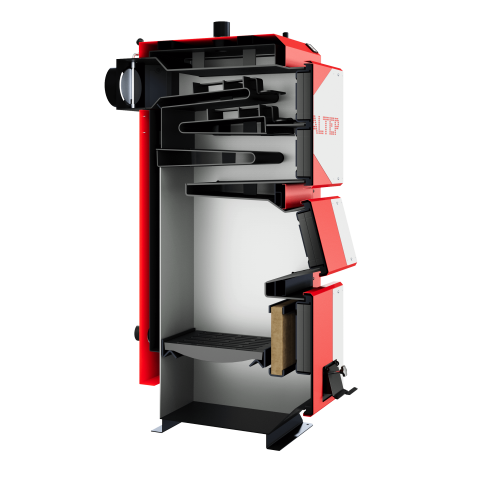

In the basic configuration, the boiler can be operated in the mode of manual loading of solid fuel. To switch the boiler to the automatic fuel supply mode, it is necessary to additionally install a door for the pellet burner, the burner itself and the fuel hopper. The boiler has a cast iron grate (15-40 kW), or a water grate (50-250 kW). The multi-channel air supply system ensures long-lasting and even combustion from top to bottom. This advantage allows the use of different types of fuel, different sizes and fractions.

With its compact dimensions, the boiler has a large convection surface area, which ensures high efficiency and significantly saves fuel consumption.

Boilers of the seriesDUO UNI Plus are equipped with a fan and a control unit to automate the boiler operation.

3 reviews on Solid fuel boiler DUO UNI Plus

Алекс
27.11.2021

Ожидания:При разовому завантаженні палива - до 24 год Реальность: дрова дуб 5 часов с натяжкой!

13.12.2021
Добрый день. Сервис компании Альтеп-Центр ознакомился с Вашим обращением по поводу времени горения на одной загрузке. Этот параметр зависит от следующих факторов: 1-монтаж котла в систему теплоснабжения с учетом защиты котла от захода "холодной" обратки; 2-соблюдения внутреннего диаметра труб "прямой и обратной воды"; 3-параметров дымохода (внутренний диаметр и минимальная высота, с учетом горизонтального участка и высоты конька крыши; 4-приточной вентиляции в котельне; 5-тип используемого топлива и его теплотворная способность; 6-скорости работы циркуляционного насоса; 7-теплопотерь здания; 8-настроек параметров автоматики по первому и второму режимах работы котла;

Юрий
08.07.2020

Хороший котел покупал в Лущеве в Одессе но за 2 зимы я так и не смог увеличить время сгорания более 7ми часов, за ночь прогорает, было бы неплохо если бы со мной связались и дали настройки автоматики под твердые породы древесины(граб)

Грищенко Андрей

23.07.2020
Спасибо за Ваш отзыв, обязательно свяжемся!

Валик Бутько
17.02.2020

Котлом Альтеп Duo Uni Plus 15 задоволений. Не жлкуємо, що купили саме цей котел. Як кажуть вміють і наші робити для Українців.

17.02.2020
Дякуємо Вам за вибір нашої продукції.
