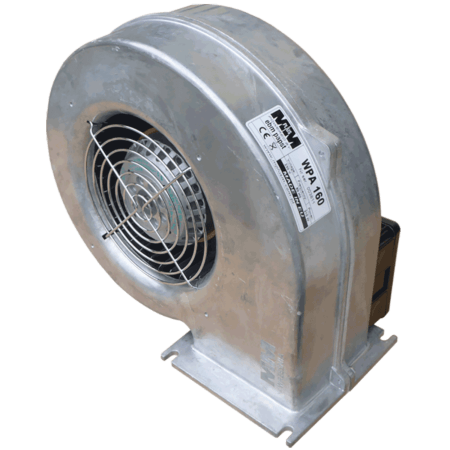

Fan for solid fuel boiler
Fan for solid fuel boiler
The fan is used to pump air into the furnace of a central heating boiler.
They can also be used for combined ventilation and heating.
- The fan operates at an ambient temperature of 0 to 40 C.
| Model. | WPa 120 HK | WPA-140K | WPA 145 KI | G2E 160 AY | G2E 180 EH | DM-80 |
| Motor type | R2E120-AR38-40 | RF2C - 140/059 K172 | RF2C - 140/059 K097 | R2E160-AY47-01 | G2E 180-EH03 -01 | RF2C-120/062K |
| Max. pressure | 345 Pa | 355 Pa | 390 Pa | 560 Pa | 720 Pa | 360 Pa |
| Max. performance | 255 m³/h | 395 m3/h | 505 m3/h | 600 m3/h | 760 m³/h | 255 m3/h |
| The number of revolutions | 2500 rpm | 1350 rpm | 2300 rpm | 2100 rpm | 1950 rpm | 2350 rpm |
| Power consumption | 83 W | 100 W | 155 W | 200 W | 400 W | 83 W |
