Main Catalogue Boilers with automatic fuel supply Boilers on pellets Boiler TRIO UNI Pellet

Solid fuel boilers Trio Uni Pellet

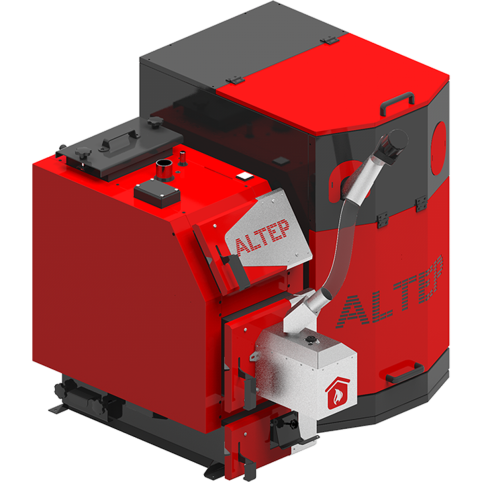

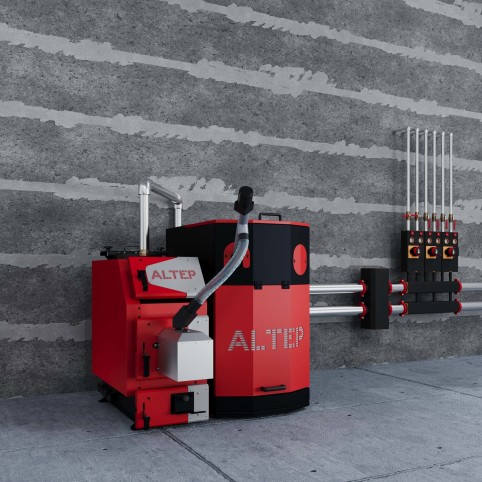

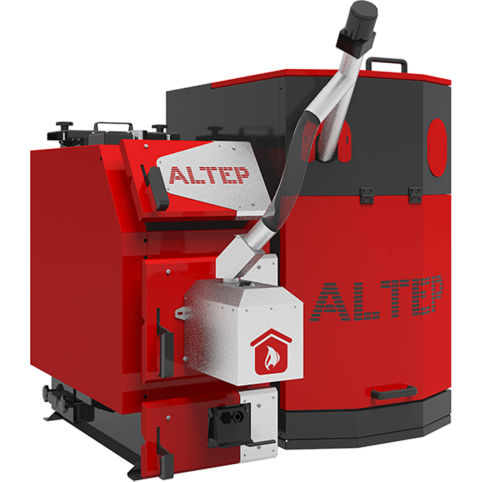

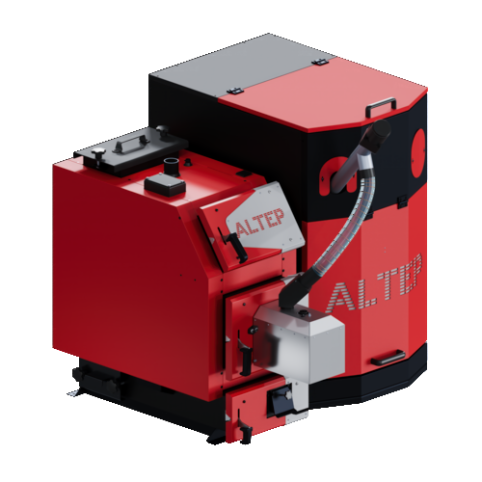

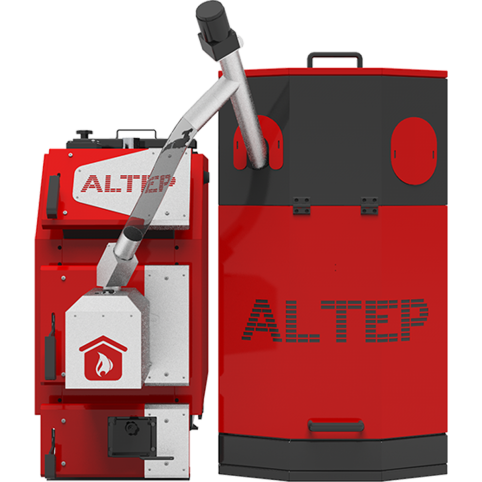

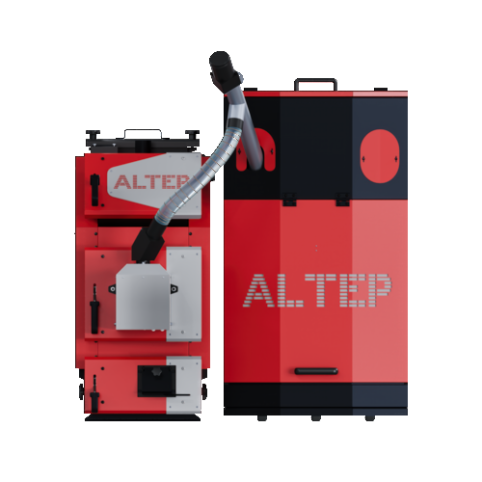

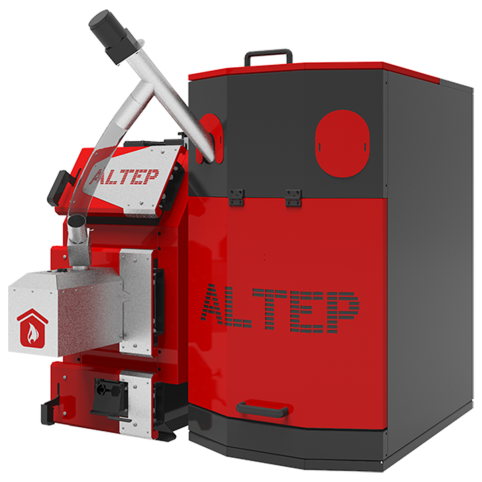

Name: Boiler TRIO UNI Pellet
Brand: Altep
SKU: 9
Rating: 5 (2 reviews)

Customer Reviews: (2)

Solid fuel boilers Trio Uni Pellet

Customer Reviews: (2)

Long-burning pellet boilers with a torch-type burner that provides dosed feeding, auto-ignition and auto-extinguishing of pellets. If necessary, you can easily switch the boiler from auto-feed to manual fuel loading mode.

The boilers are available in two versions:

TRIO UNI Pellet - steel furnace chamber
TRIO UNI Pellet Plus -Furnace chamber with fireclay stone

The boiler material is high-quality steel, 6 mm thick;
Large furnace chamber;
Automatic fuel supply;
Automatic fuel ignition system;
Versatility - the ability to operate the boiler in the mode of manual fuel loading and automatic feeding;
Torch burner with automatic cleaning function;
Insulated doors with double insulation - for safe operation and minimization of heat loss;

EFFICIENCY

from-91%

Fuel

for automatic mode: wood pellets and agro-pellets. for manual mode: firewood, coal, briquettes.

Auto-ignition

GSM

Wi-Fi module

Self-cleaning of the burner

The period between fuel loading

48-60 h

Warranty

3 years

Door

70 mm double insulation

Metal thickness

6 mm

Volumetric loading chamber

Power

14-600 kW

specifications

Dimensions

Description

Reviews (2)

Technical characteristics of Trio Uni Pellet/Plus 14-65 kW boilers

Parameter	Unit of measurement	Norm for the TRIO UNI Pellet/Plus boiler
Rated power of the boiler	kW	14	20	30	40	50	65
Heat exchange surface area in the boiler	м2	2,0	2,2	3,0	4,0	4,7	6,0
Efficiency, not less than	%</notranslate	91	91	91	91	91	91
Fuel tank capacity	dm3	300	300	300	300	500	500
Water capacity of the boiler	л	75	80	100	140	160	190
Boiler weight without water	kg	410	440	540	630	680	780
The required flue gas flow	Pa.	23-30	23-30	23-30	23-30	23-30	23-30
Flue gas temperature	°C	100-180	100-180	100-180	100-180	100-180	100-180
Recommended minimum water temperature	°C	58	58	58	58	58	58
Maximum water temperature	°C	85	85	85	85	85	85
Nominal operating water pressure	MPa	0,15	0,15	0,15	0,15	0,20	0,20
Electricity consumption (230 V, 50 Hz), no more than
during operation	W	80	80	80	80	80	80
when igniting	mm	800	800	800	800	800	800
External dimensions of the hog	mm	159	159	178	219	219	248
Diameter of mains water connections (DN)	mm	50	50	50	50	50	50
Recommended chimney parameters
cross-sectional area	cm2	201	201	248	377	377	452
inner diameter	mm	160	160	180	220	220	250
height (minimum allowable)	м	5	5	5	5	6	6
Diameter of the pipe for the safety valve (DN)	mm	15	15	15	15	20	20
Diameter of the boiler water drain connection (DN)	mm	15	15	15	15	20	20

Technical characteristics of Trio Uni Pellet/Plus 80-600 kW boilers

Parameter	Unit of measurement			Norm for the TRIO UNI Pellet/Plus boiler
Rated power of the boiler	kW	80	97	150	200	250	300	400	500	600
Heat exchange surface area in the boiler	м2	8,0	10,0	15,0	18,5	27,0	31,0	37,0	45,0	52
Efficiency, not less than	%</notranslate	91	91	91	91	91	91	91	91	91
Fuel tank capacity	dm3	1000	1000	1000	1000	1000	1000	1000	1000	1000
Water capacity of the boiler	л	265	325	455	545	750	840	970	1200	1400
Boiler weight without water	kg	900	1050	1550	2010	2600	2920	3500	4440	4700
The required flue gas flow	Pa.	23-30	23-30	23-30	23-30	23-30	23-30	23-30	23-30	23-30
Flue gas temperature	°C	100-180	100-180	100-180	100-180	100-180	100-180	100-180	100-180	100-180
Recommended minimum water temperature	°C	58	58	58	58	58	58	58	58	58
Maximum water temperature	°C	85	85	85	85	85	85	85	85	85
Nominal operating water pressure	MPa	0,20	0,20	0,20	0,20	0,20	0,20	0,20	0,20	0,20
Electricity consumption (230 V, 50 Hz), no more than
during operation		100	100	100	500	500	500	500	1025	1025
when igniting		800	800	800	1200	1200	1200	1200	2100	2100
External dimensions of the hog		248	298	298	348	398	448	498	548	548
Diameter of mains water connections (DN)		65(FL)	65(FL)	80(FL)	100(FL)	100(FL)	100(FL)	125(FL)	125(FL)	125(FL)
Recommended chimney parameters
cross-sectional area		452	660	660	908	1194	1520	1885	2290	2290
inner diameter		250	300	300	350	400	450	500	550	550
height (minimum allowable)		7	7	7	9	10	12	13	14	16
Diameter of the pipe for the safety valve (DN)		20	25	50(FL)	50(FL)	50(FL)	50(FL)	2×50(FL)	2×50(FL)	2×50(FL)
Diameter of the boiler water drain connection (DN)		20	25	25	25	25	25	25	25	25

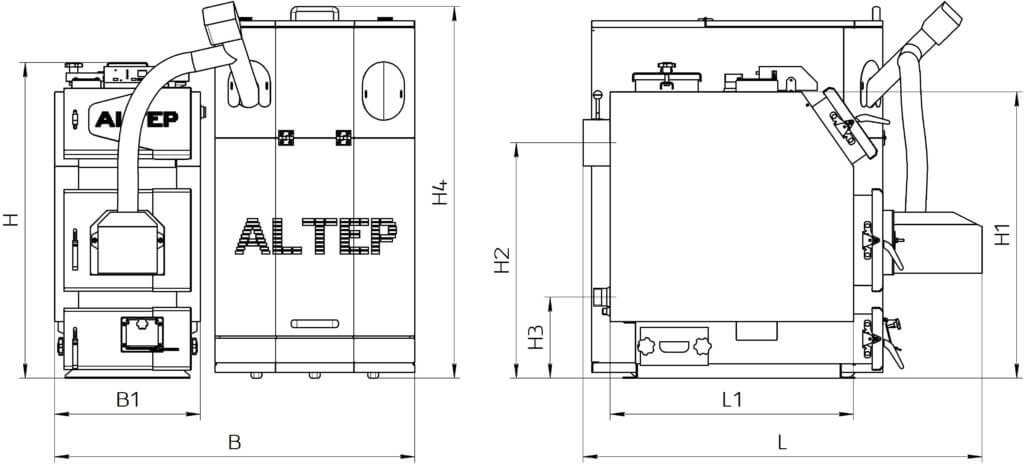

Overall dimensions of the TRIO UNI Pellet boiler 14-65 kW

Overall dimensions of the TRIO UNI Pellet boiler 80-97 kW

Overall dimensions of the TRIO UNI Pellet boiler 150-600 kW

Parameter	Unit of measurement	Norm for the TRIO UNI Pellet/Plus boiler
Overall dimensions of the boiler	kW	14	20	30	40	50	65	80	97	150	200	250	300	400	500	600
B, minimum	mm	1250	1250	1300	1300	1350	1450	1550	1950	2050	2250	2400	2450	2500	2750	2870
B1	mm	500	500	550	550	600	680	840	940	1040	1160	1320	1370	1420	1670	1790
H	mm	1060	1060	1170	1220	1270	1320	1450	1470	1670	1770	1770	1870	1870	1970	1970
H1	mm	990	990	1095	1145	1195	1245	1320	1340	1540	1640	1640	1740	1740	1840	1840
H2	mm	810	810	900	930	980	1030	1080	1075	1265	1315	1290	1365	1340	1415	1415
H3	mm	280	280	280	280	280	280	285	285	355	355	355	355	355	355	355
H4	mm	1230	1230	1230	1230	1600	1600	1700	1700	1700	1700	1700	1700	1700	1700	1700
L	mm	1470	1520	1540	1800	1800	1800	1950	2300	2650	2800	3100	3500	4000	4300	4600
L1	mm	840	890	96	1185	1185	1230	1325	1485	1835	1935	2245	2325	2685	2835	3065

Solid fuel cats of the typeTRIO UNI Pellet - long-burning pellet boilers. They are designed for heating residential buildings and industrial facilities in automatic mode. This mode includes: ignition and fuel supply, maintenance of combustion, extinguishing and cleaning of the burner. Power range:14-600 kW.

In the basic configuration, the boiler can be operated in the automatic fuel supply mode. To switch the boiler to manual fuel loading, a fan and control unit must be installed. The multi-channel air supply system ensures long-lasting and even combustion of fuel from top to bottom. This advantage allows the use of different types of fuel, different sizes and fractions.

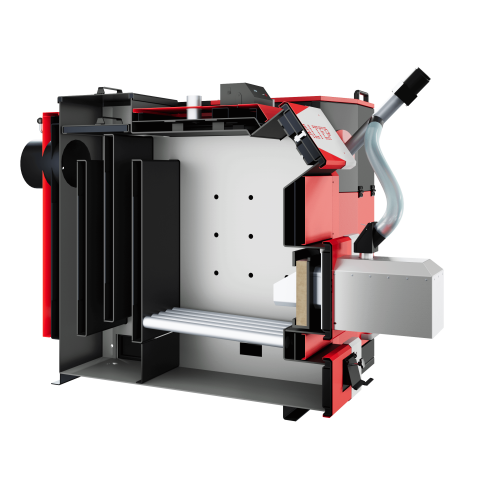

A special feature of the model is the placement of the heat exchanger in the rear part of the boiler, which significantly expands the power range. The vertical placement of the heat exchanger shelves minimizes the accumulation of unburned fuel particles, which allows cleaning the boiler once a week. Inspection doors are located on the top and on both sides of the boiler, which provides convenient maintenance of the equipment.

The autonomy of the boiler is ensured by sensors that monitor the combustion process in the boiler and are also responsible for the safety of the equipment. Modern technologies allow to control the boiler combustion processremotely- by means ofGSM-module andWi-Fi.

2 reviews on Solid fuel boilers Trio Uni Pellet

Юрій
07.04.2020

Для модернизации котельной, которая отапливает производственные цеха, в связи с подорожанием природного газа закупили и установили котел Altep Trio Uni Pellet 250 кВт. Котел работает на пелетах (древесных и агро) с факельной горелкой вашего производства. За три года эксплуатации котел и горелка работаю безотказно, мы значительно сэкономили на отоплении, а автономность и удобство работы не уступает газовым котлам.

07.04.2020

Спасибо за Ваш отзыв.

Сергій Пилипчук
19.03.2020

Встановили котел Trio Uni Pellet на 97 кВт восени 2019 р. у виробничому цеху (виробляємо меблі). Дуже задоволені обладнанням. Для опалення використовуємо пелети, вистачає на 2 дні. Котел зручно чистити. Хлопці гарно піідібрали та швидко доставили котел. Дякуємо Альтеп. Рекомендую.

26.03.2020

Дякуємо за Ваш відгук!
