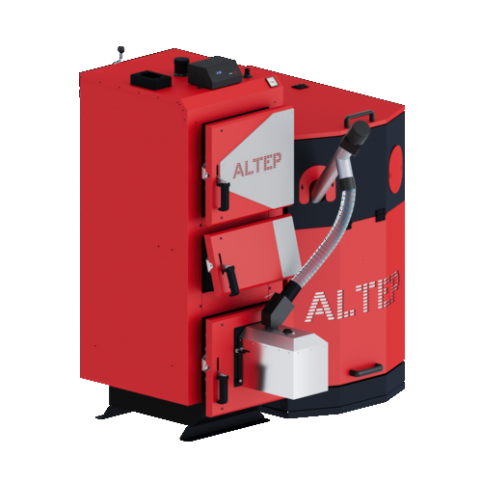

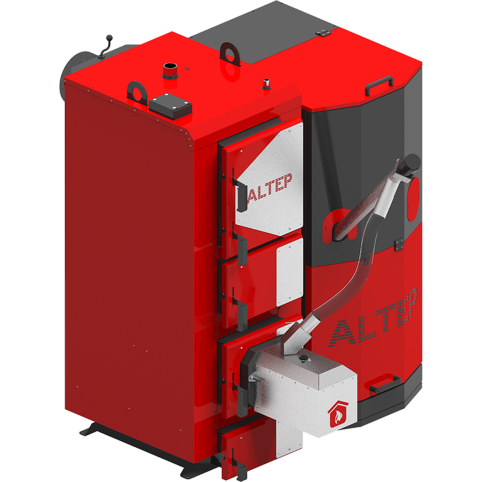

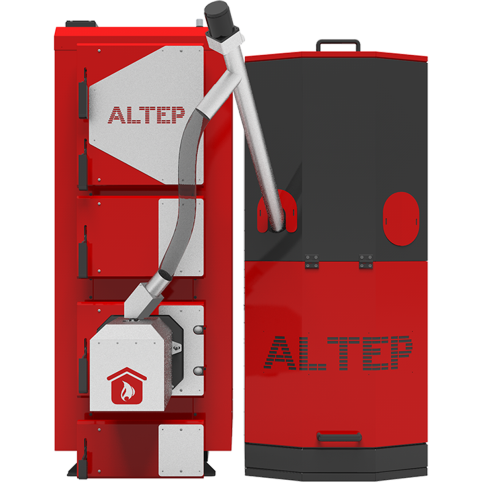

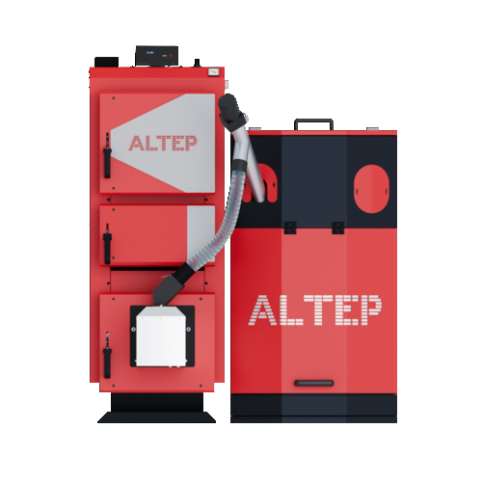

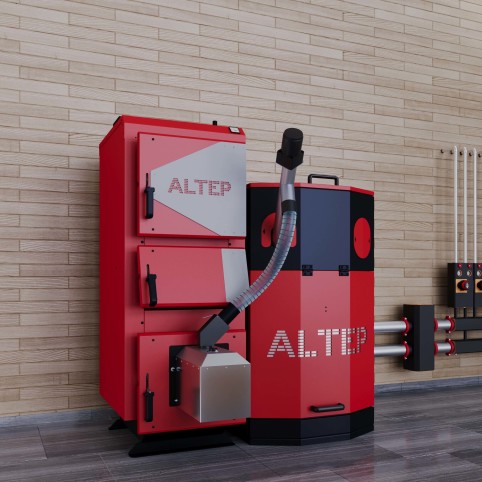

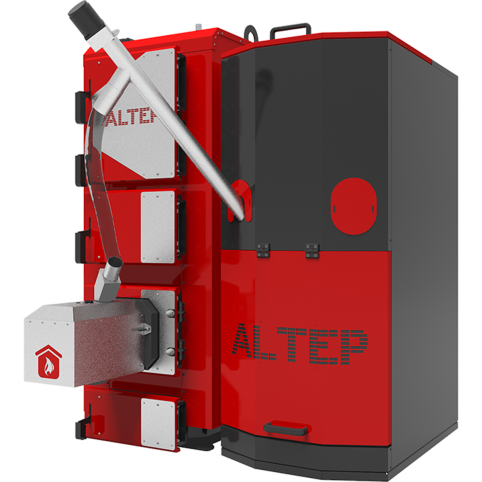

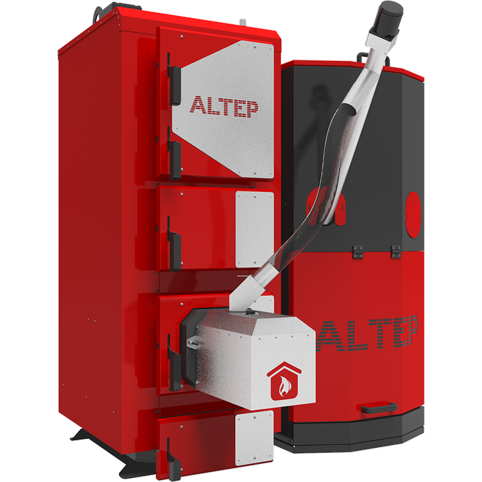

Solid fuel boiler Duo Uni Pellet

Name: Boiler DUO UNI Pellet
Brand: Altep
SKU: 7
Rating: 5 (1 reviews)

Customer Reviews: (1)

Solid fuel boiler Duo Uni Pellet

Customer Reviews: (1)

Long-burning pellet boilers with automatic fuel supply and a flame-type burner. The design of the heat exchanger makes it easy to switch the boiler from auto-feed to manual fuel loading mode.

The boilers are available in two versions:

DUO UNI Pellet - steel furnace chamber
DUO UNI Pellet Plus - firebox with chamotte stone

The boiler material is high-quality steel, 6 mm thick;
Automatic fuel supply;
Automatic fuel ignition system;
Versatility - the ability to operate the boiler in the mode of manual fuel loading and automatic feeding;
Torch burner with automatic cleaning function;
Insulated doors with double insulation - for safe operation and minimization of heat loss;

EFFICIENCY

from-91%

Auto-ignition

Fuel

wood pellets and agro pellets

GSM

Wi-Fi module

Self-cleaning of the burner

Environmental friendliness

The period between fuel loading

48-60 h

Warranty

3 years

Door

70 mm double insulation

Metal thickness

6 mm

Volumetric loading chamber

Power

15-250 kW

specifications

Dimensions

Description

Reviews (1)

Parameter	Unit of measurement	Norm for the Duo UNI Pellet Plus boiler
Rated power of the boiler	kW	15	21	27	33	40	50	62	75	95	120	150	200	250
Heat exchange surface area in the boiler	м2	1,9	2,3	2,6	3,1	3,6	4,5	5,0	6,0	8,2	9,3	10,2	14,1	17,4
Fuel tank capacity	dm3	300	300	300	300	300	500	500	500	700	700	1000	1000	1000
Water capacity of the boiler	л	84	92	105	120	135	170	194	220	290	328	357	560	660
Boiler weight without water	kg	420	440	480	520	560	790	830	910	1220	1310	1400	1920	2350
The required flue gas flow	Pa.	23-30	23-30	23-30	23-30	23-30	23-30	23-30	23-30	23-30	23-30	23-30	23-30	23-30
Flue gas temperature	°C	100-180	100-180	100-180	100-180	100-180	100-180	100-180	100-180	100-180	100-180	100-180	100-180	100-180
Recommended minimum water temperature	°C	58	58	58	58	58	58	58	58	58	58	58	58	58
Maximum water temperature	°C	85	85	85	85	85	85	85	85	85	85	85	85	85
Nominal operating water pressure	MPa	0,15	0,15	0,15	0,15	0,15	0,20	0,20	0,20	0,20	0,20	0,20	0,20	0,20
Electricity consumption (230 V, 50 Hz), no more than
during operation	W	80	80	80	80	80	80	80	80	100	100	100	500	500
when igniting	W	800	800	800	800	800	800	800	800	800	800	800	1200	1200
External dimensions of the hog	mm	159	159	178	178	219	248	248	248	298	298	298	348	398
Diameter of mains water connections (DN)	mm	50	50	50	50	50	50	50	65(FL)	65(FL)	80(FL)	80(FL)	100(FL)	100(FL)
Recommended chimney parameters
cross-sectional area	cm2	201	201	248	248	377	452	452	452	660	660	660	908	1194
inner diameter	mm	160	160	180	180	220	250	250	250	300	300	300	350	400
height (minimum allowable)	м	5	5	5	5	6	6	6	7	7	7	8	9	10
Diameter of the fitting for the safety valve (DN)	Mm.	15	15	15	15	15	20	20	20	25	25	50(FL)	50(FL)	50(FL)

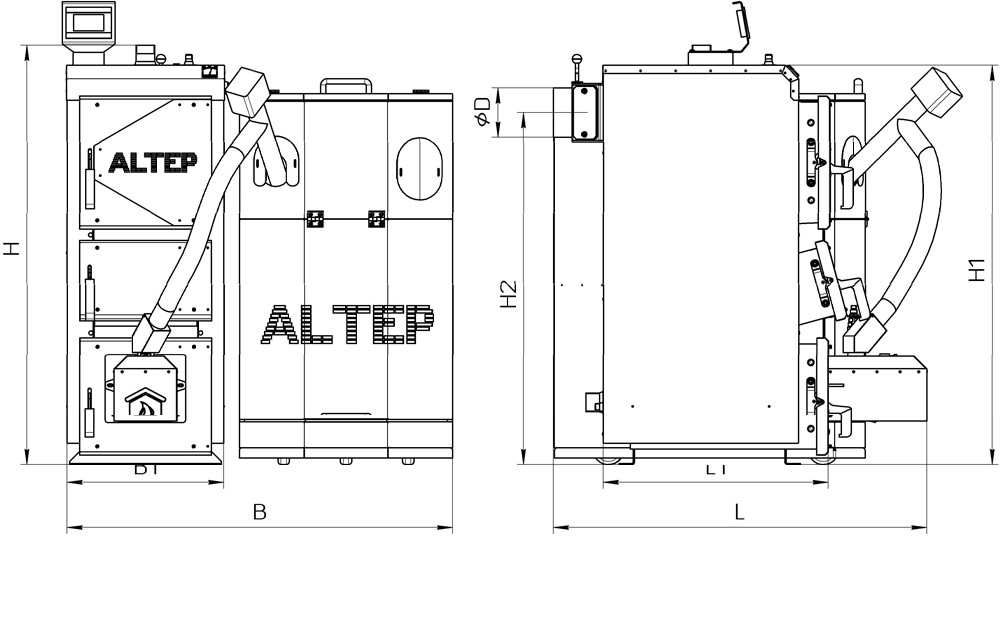

Overall dimensions of the Altep DUO UNI Pellet boiler 15-40 kW

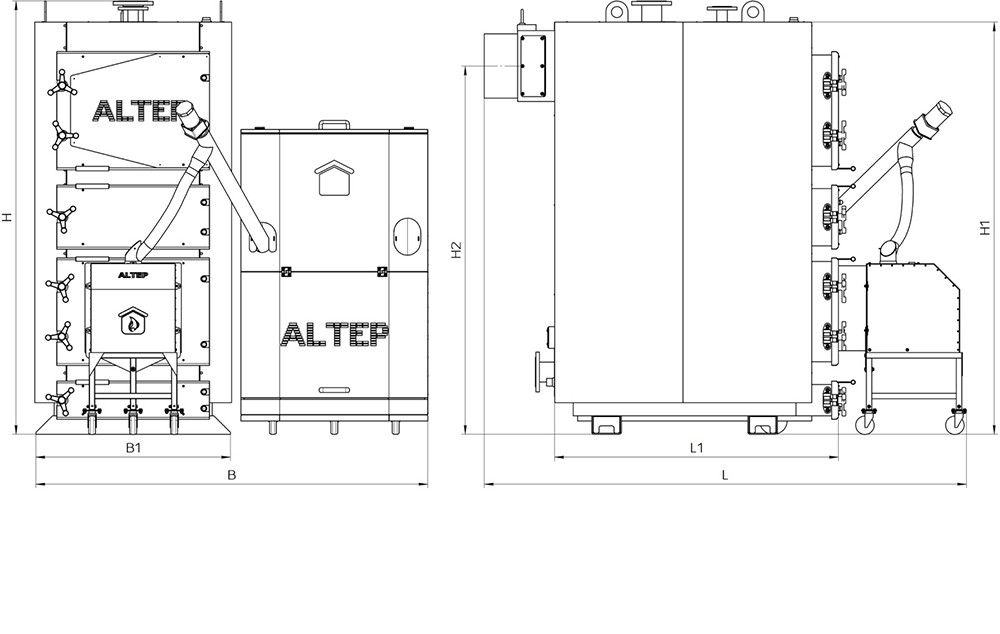

Overall dimensions of the Altep DUO UNI Pellet boiler 50-250 kW

Parameter	Unit of measurement	Duo UNI Pellet/Plus boiler
Overall dimensions of the boiler	kW	15	21	27	33	40	50	62	75	95	120	150	200	250
B	mm	1300	1300	1350	1350	1350	1400	1400	1400	1550	1600	1900	2100	2300
B1	mm	510	510	560	560	560	670	670	670	820	860	860	1070	1270
H	mm	1490	1490	1540	1590	1590	1820	1870	1910	2110	2130	2130	2350	2350
H1	mm	1425	1425	1475	1525	1525	1720	1770	1800	1990	2010	2010	2230	2230
H2	mm	1270	1270	1310	1360	1340	1523	1573	1598	1763	1785	1785	1992	1967
L	mm	1220	1270	1270	1340	1420	1610	1620	1720	2030	2180	2400	2660	3000
L1	mm	680	730	730	800	880	910	960	1060	1140	1290	1390	1530	1700
D	mm	159	159	178	178	219	248	248	248	298	298	298	348	398

Solid fuel cats of the typeDUO UNI Pellet - are long-burning pellet boilers. They are designed for heating residential buildings and industrial facilities in the automatic fuel supply mode. This mode includes: ignition and fuel supply, maintenance of combustion, extinguishing and cleaning of the burner. Power range:15-250 kW.

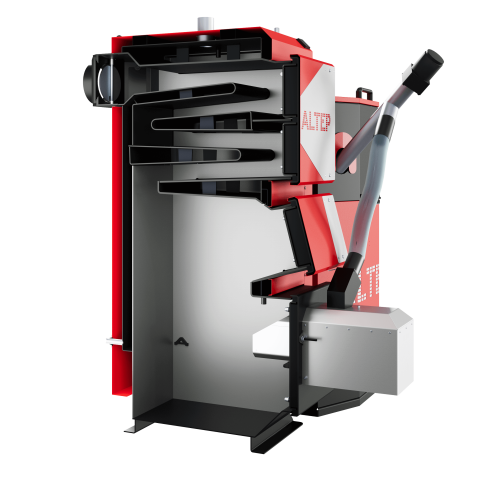

In the basic configuration, the boiler can be operated in the automatic fuel supply mode. To switch the boiler to the manual loading mode, it is necessary to install a cast iron grate (15-40 kW), fan and control unit. The multi-channel air supply system ensures long-lasting and even combustion from top to bottom. This advantage allows the use of different types of fuel, different sizes and fractions.

With its compact dimensions, the boiler has a large convection surface area, which ensures high efficiency and significantly saves fuel consumption.

The autonomy of the boiler is ensured by sensors that monitor the combustion process in the boiler and are also responsible for the safety of the equipment. Modern technologies allow to control the boiler combustion processremotely- by means ofGSM-module andWi-Fi.
