Solid fuel boiler DUO Pellet

Customer Reviews: (2)

Reliable boilers with automatic dosed fuel supply, capable of operating on fractional fuel (pellets, coal, etc.). They are equipped with a European-made retort burner. The boiler can be easily switched to manual fuel loading mode. Safe operation is ensured by a boiler control unit and a non-volatile fire extinguishing system.

The boilers are available in two versions:

  • DUO Pellet - adapted for installation of cast iron grate
  • DUO Pellet N - with water grate
  • The boiler material is high-quality steel, 6 mm thick;
  • Automatic fuel supply;
  • Self-cleaning function of the burner;
  • Insulated doors with double insulation for safe operation and minimization of heat loss;
  • Unpretentious to fuel;
  • Easy to maintain;
EFFICIENCY
from-91%
Fuel
fine coal, wood pellets and agro-pellets
Environmental friendliness
The period between fuel loading
48-60 h
Automatic fuel supply
Warranty
3 years
Door
70 mm double insulation
Metal thickness
6 mm
Volumetric loading chamber
Power
17-250 kW
specifications
Dimensions
Description
Reviews (2)
Parameter Unit. Norm for the DUO Pellet boiler (KT-2ESH)
Rated power of the boiler kW 17 25 31 38 50 62 75 95 120 150 200 250
Heat exchanger area м2 2,5 2,9 3,2 3,9 4,6 5,3 6,2 7,8 9,8 11,3 15,1 18,9
Efficiency, not less than %</notranslate 91 91 91 91 91 91 91 91 91 91 91 91
Fuel tank capacity dm3 215 240 310 340 380 460 540 620 620 620 840 1050
Water capacity of the boiler л 82 117 132 152 192 222 268 398 473 580 773 966
Weight of the boiler without water kg 440 480 520 580 670 770 860 1170 1310 1450 1790 2200
Fuel gas temperature °C 100-180 100-180 100-180 100-180 100-180 100-180 100-180 100-180 100-180 100-180 100-180 100-180
Recommended minimum water temperature °C 58 58 58 58 58 58 58 58 58 58 58 58
Maximum water temperature °C 85 85 85 85 85 85 85 85 85 85 85 85
Nominal operating water pressure MPa 0,15 0,15 0,15 0,15 0,20 0,20 0,20 0,20 0,20 0,20 0,20 0,20
Electricity consumption, no more than W 180 180 180 180 180 290 350 430 430 430 500 500
Connecting (external) dimensions of the hog mm 159 178 178 219 245 245 245 299 299 299 348 398
Diameter of mains water connections (DN) mm 50 50 50 50 50 50 65(FL) 65(FL) 80(FL) 80(FL) 100(FL) 100(FL)
Recommended chimney parameters
cross-sectional area cm2 201 248 248 377 483 483 483 702 702 702 962 1256
inner diameter mm 160 180 180 220 250 250 250 300 300 300 350 400
height (minimum allowable) м 5 5 6 6 6 7 8 8 9 10 11 11
Maximum fan performance m3/h 270 270 270 270 270 395 505 600 600 600 600 600

Overall dimensions of the Duo Pellet boiler (KT-2ESH)

Parameter Unit of measurement Norm for Duo Pellet (KT-2ESH)
Overall dimensions mm 17 25 31 38 50 62 75 95 120 150 200 250
B mm 1240 1240 1240 1240 1240 1640 1680 1780 1950 1950 2430 2430
B1 mm 600 600 600 600 600 700 740 830 1010 1010 1290 1290
H mm 1450 1510 1510 1540 1650 1825 1925 2190 2190 2190 2360 2360
L mm 1040 1100 1100 1170 1220 1280 1325 1540 1640 1780 1940 2240

Solid fuel boilers of the typeDUO Pellet - reliable boilers with automatic fuel supply. These are long-burning boilers designed to heat rooms in automatic mode. Power range:17-250 kW.

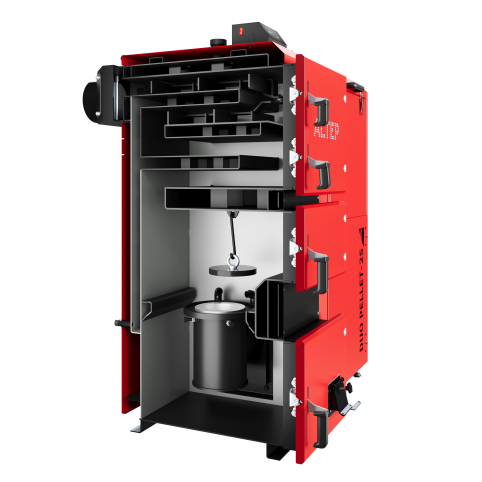

The fuel for the boiler is automatically supplied to the retort burner by means of a screw feeder from the fuel tank located next to the boiler. The hopper can be placed on the left or right side. The boiler is equipped with a deflector, which ensures uniform heat distribution over the entire area of the heat exchanger, extending the operating period of the boiler.

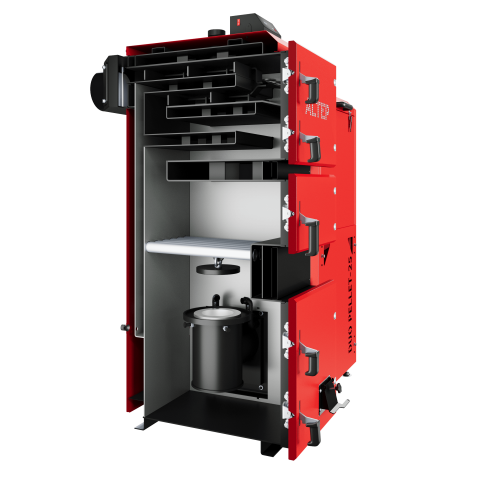

To switch the boiler to the manual mode of fuel loading, it is necessary to install a cast iron grate.

Using the control panel, the user can adjust the fuel and air supply modes for high-quality and efficient fuel combustion. The fuel supply mechanism is equipped with an emergency fire extinguishing system.
