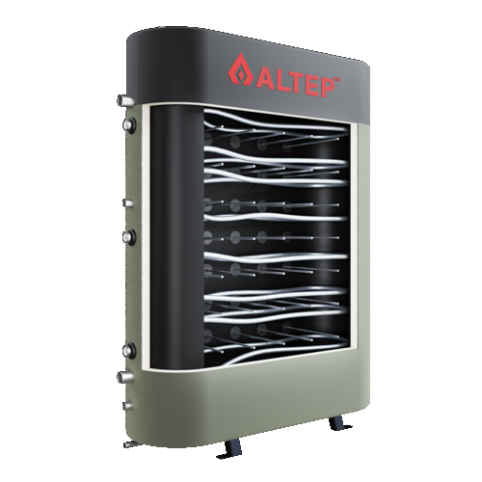

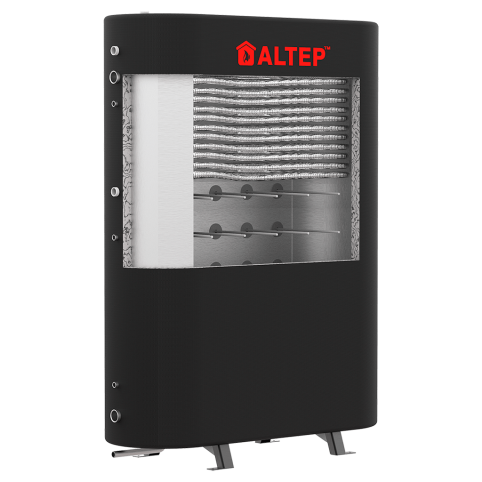

Flat heat storage with heat exchangers

Customer Reviews: (0)

Flat heat storage with heat exchangers

Customer Reviews: (0)

This is equipment that accumulates excess heat from a heat-generating device (boiler, solar collectors, etc.) in the form of a hot coolant reserve and returns it to the heating system when the boiler stops working. The installation of a heat accumulator increases the operating time of the heating system on one fuel load, and the operation of a solid fuel boiler with such a device at high temperatures saves fuel, extends its service life and facilitates maintenance.

High-quality materials - steel up to 5 mm thick, high-quality insulation;
High quality welds;
Compact dimensions that ensure convenient delivery and installation of equipment;
Possibility to choose the angle of nozzles placement;
Convenient and easy-to-clean cover;
High working pressure;

Metal thickness

up to 5 mm

Volume

500-1500л

EFFICIENCY

from 93%

Warranty

2 years

specifications

Description

Instructions PDF

Reviews (0)

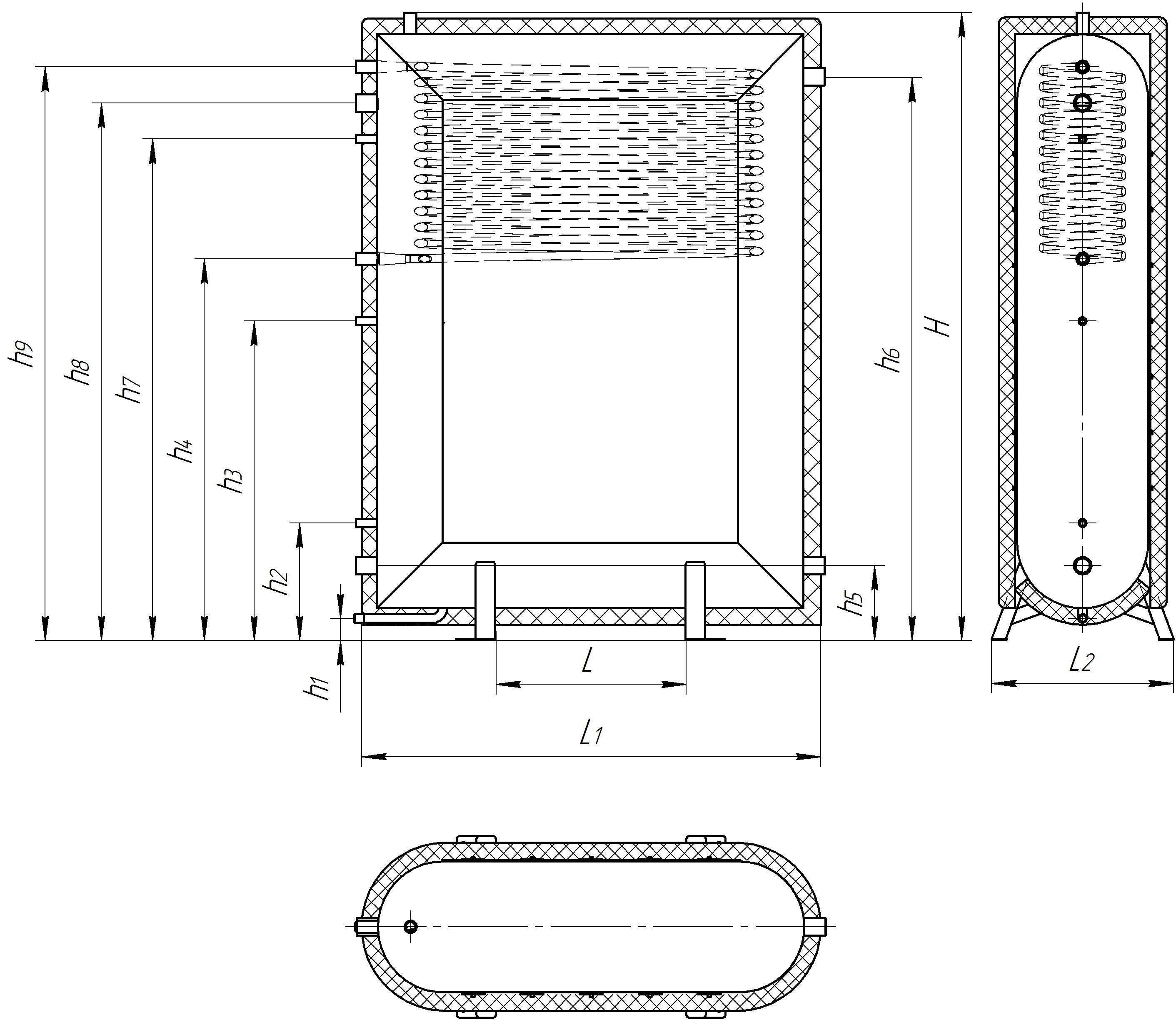

The heat accumulators are flat with an upper heat exchanger.

The version of the design	V_tank, л	Dimensions, mm				Connecting dimensions, mm									Weight (without water), kg
The version of the design	V_tank, л	Н	L	L₁	L₂	h1	h2	h3	h4	h5	h6	h7	h8	h9	Weight (without water), kg
TAP1v.500	480	1915	330	950	555	65	355	970	1160	225	1715	1525	1635	1745	128
TAP1v.500	480	1''	330	950	555	¾''	½''	½''	1''	1 ½''	1 ½''	½''	1 ½''	1''	128
TAP1v.800	780	1915	600	1400	555	65	355	970	1160	225	1715	1525	1635	1745	181
TAP1v.800	780	1''	600	1400	555	¾''	½''	½''	1''	1 ½''	1 ½''	½''	1 ½''	1''	181
TAP1v.1000	990	1915	830	1750	555	65	355	970	1160	225	1715	1525	1635	1745	218
TAP1v.1000	990	1''	830	1750	555	¾''	½''	½''	1''	1 ½''	1 ½''	½''	1 ½''	1''	218
TAP1v.1500	1440	1915	1580	2500	555	65	355	970	1160	225	1715	1525	1635	1745	305
TAP1v.1500	1440	1''	1580	2500	555	¾''	½''	½''	1''	1 ½''	1 ½''	½''	1 ½''	1''	305

H is the connection pipe of the security group;
h₁- a pipe for draining the coolant;
h₂, h₃, h₇- temperature measurement nozzles;
h₅, h₆, h₈- supply and return pipes;
h₄, h₉ - connection pipes for the upper heat exchanger.

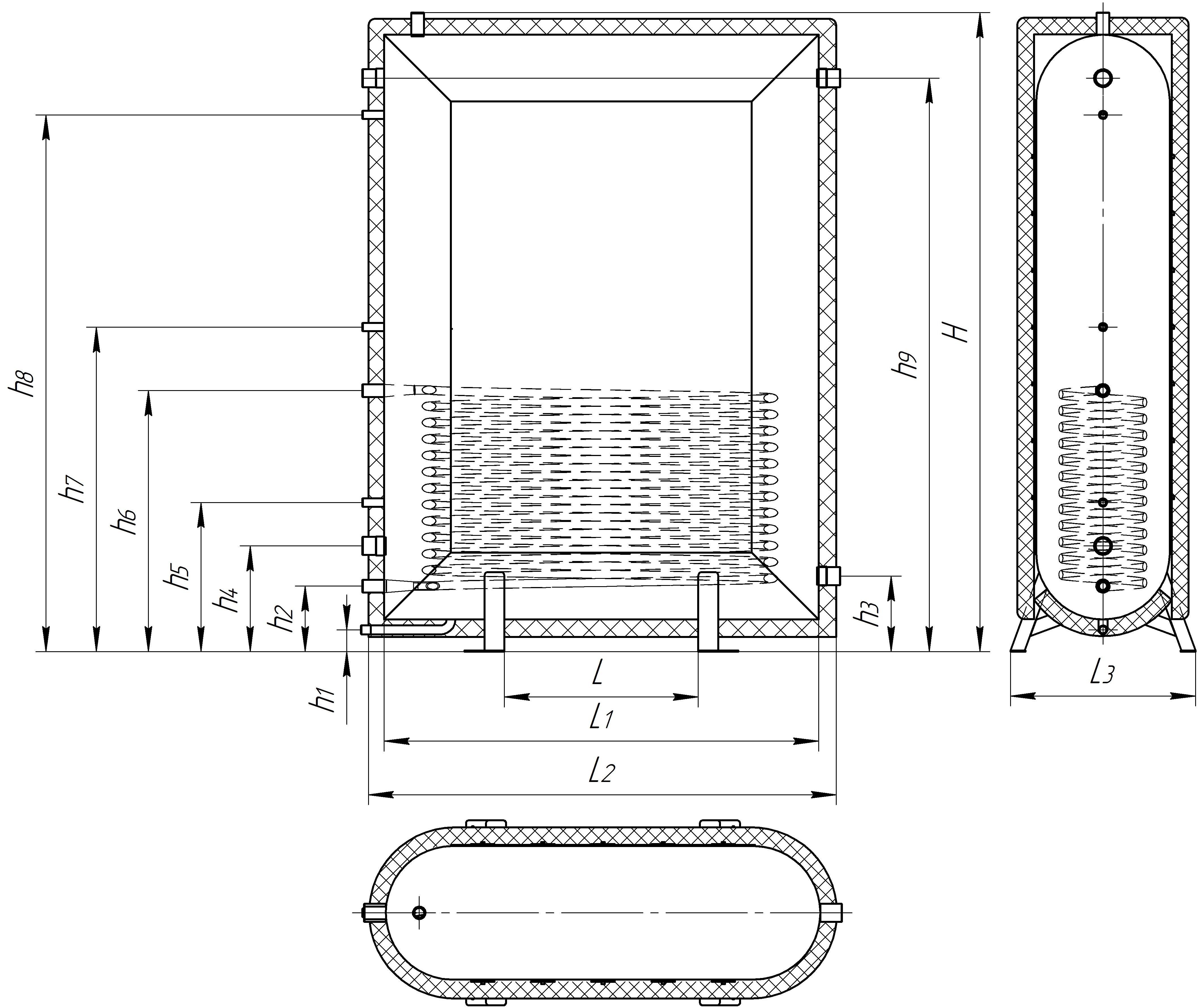

The heat accumulators are flat with a bottom heat exchanger.

The version of the design	V_tank, л	Dimensions, mm				Connecting dimensions, mm									Weight (without water), kg
The version of the design	V_tank, л	Н	L	L₁	L₂	h1	h2	h3	h4	h5	h6	h7	h8	h9	Weight (without water), kg
TAP1n.500	480	1915	330	950	555	65	225	355	465	810	1035	1605	225	1715	128
TAP1n.500	480	1''	330	950	555	¾''	1''	1 ½''	1 ½''	1''	½''	½''	1 ½''	1 ½''	128
TAP1n.800	780	1915	600	1400	555	65	225	355	465	810	1035	1605	225	1715	181
TAP1n.800	780	1''	600	1400	555	¾''	1''	1 ½''	1 ½''	1''	½''	½''	1 ½''	1 ½''	181
TAP1n.1000	990	1915	830	1750	555	65	225	355	465	810	1035	1605	225	1715	218
TAP1n.1000	990	1''	830	1750	555	¾''	1''	1 ½''	1 ½''	1''	½''	½''	1 ½''	1 ½''	218
TAP1n.1500	1440	1915	1580	2500	555	65	225	355	465	810	1035	1605	225	1715	305
TAP1n.1500	1440	1''	1580	2500	555	¾''	1''	1 ½''	1 ½''	1''	½''	½''	1 ½''	1 ½''	305

H is the connection pipe of the security group;
h₁- a pipe for draining the coolant;
h₅, h₆, h₈- temperature measurement nozzles;
h₃, h₄, h₉- supply and return pipes;
h₂, h₆ - connection pipes for the lower heat exchanger.

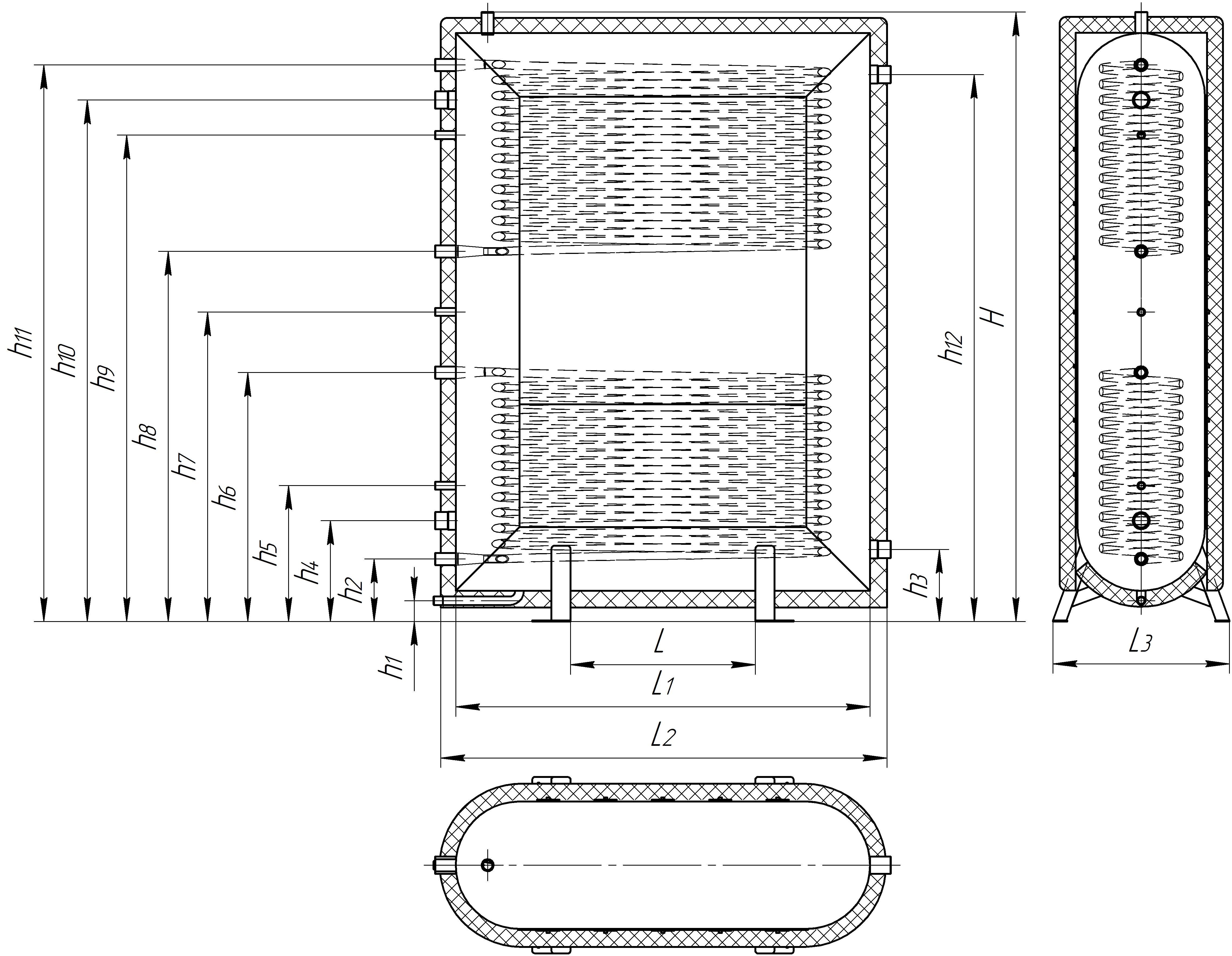

Flat heat accumulators with two heat exchangers.

The version of the design	V_tank, л	Dimensions, mm				Weight (without water), kg
		Н	L	L₁	L₂
TAP2.500	480	1915	330	950	555	138
		1''
TAP2.800	780	1915	600	1400	555	191
		1''
TAP2.1000	990	1915	830	1750	555	228
		1''
TAP2.1500	1440	1915	1580	2500	555	315

H is the connection pipe of the security group;
h₁- a pipe for draining the coolant;
h₅, h₇, h₉- temperature measurement nozzles;
h₃, h₄, h₁₀, h₁₂- supply and return pipes;
h₂, h₆ - connection pipes for the lower heat exchanger.
H₈, h₁₁ - connection pipes for the upper heat exchanger.

The version of the design	Connecting dimensions, mm
The version of the design	H	h1	h2	h3	h4	h5	h6	h7	h8	h9	h10	h11	h12
TAP2.500	1915	65	195	225	315	445	780	970	1160	1525	1635	1745	1715
TAP2.500	1''	¾''	1''	1 ½''	1 ½''	½''	1''	½''	1"	½''	1 ½''	1''	1 ½''
TAP2.800	1915	65	195	225	315	445	780	970	1160	1525	1635	1745	1715
TAP2.800	1''	¾''	1''	1 ½''	1 ½''	½''	1''	½''	1"	½''	1 ½''	1''	1 ½''
TAP2.1000	1915	65	195	225	315	445	780	970	1160	1525	1635	1745	1715
TAP2.1000	1''	¾''	1''	1 ½''	1 ½''	½''	1''	½''	1"	½''	1 ½''	1''	1 ½''
TAP2.1500	1915	65	195	225	315	445	780	970	1160	1525	1635	1745	1715
TAP2.1500	1''	¾''	1''	1 ½''	1 ½''	½''	1''	½''	1"	½''	1 ½''	1''	1 ½''

This is equipment that accumulates excess heat in the heating system and returns it to the system as needed. Heat accumulators ensure that the boiler operates at nominal modes, with the most efficient fuel combustion, and the durability of the heating system increases. Installing a heat accumulator increases the operating time of the heating system on one fuel load. This equipment balances the temperature in the heated room and protects the boiler from overheating. Heat accumulators are connected between the boiler and the heating system.

Flat heat accumulators - are flat tanks. The volume of heat accumulators:200-1500 л.

Flat heat accumulators provide for the possibility of installing a stainless steel heat exchanger (upper and lower). It is possible to place the coolant inlet and outlet pipes under0°, 180°</notranslate.

Instructions for Flat heat storage with heat exchangers

Connection diagram
