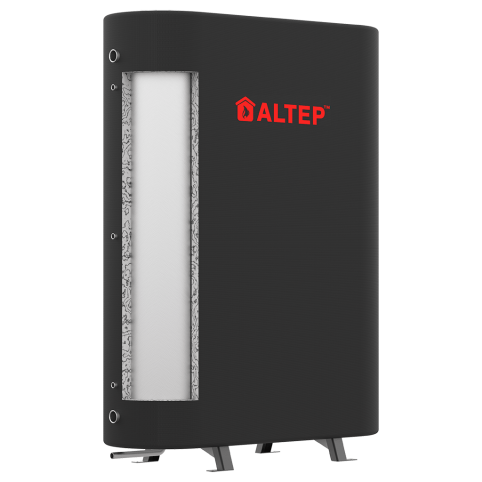

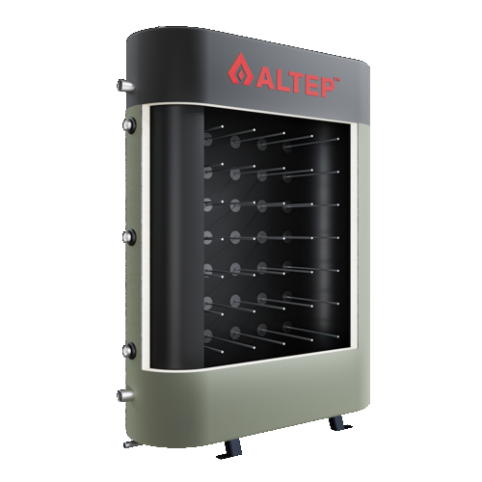

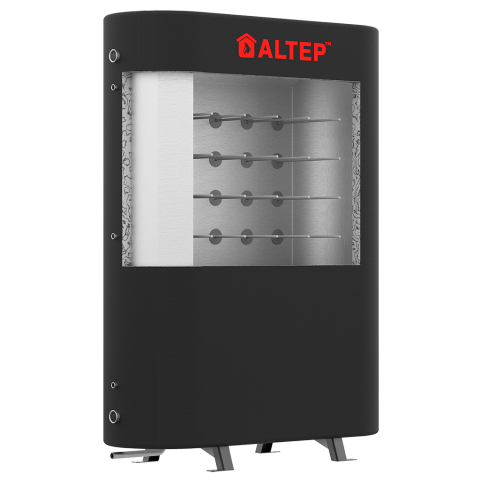

Flat heat accumulator without heat exchanger
This is equipment that accumulates excess heat from a heat-generating device (boiler, solar collectors, etc.) in the form of a hot coolant reserve and returns it to the heating system when the boiler stops working. The installation of a heat accumulator increases the operating time of the heating system on one fuel load, and the operation of a solid fuel boiler with such a device at high temperatures saves fuel, extends its service life and facilitates maintenance.
- High-quality materials - steel up to 5 mm thick, high-quality insulation;
- High quality welds;
- Compact dimensions that ensure convenient delivery and installation of equipment;
- Possibility to choose the angle of nozzles placement;
- Convenient and easy-to-clean cover;
- High working pressure;
Flat heat accumulators without heat exchangers.
|
The version of the design |
Vtank, л |
Dimensions, mm |
Connecting dimensions, mm |
Weight (without water), kg |
||||||||
|
Н |
L |
L1 |
L2 |
h1 |
h2 |
h3 |
h4 |
h5 |
h6 |
|
||
|
TAP0.500 |
480 |
1915 |
330 |
950 |
555 |
65 |
355 |
970 |
1585 |
225 |
1715 |
117 |
|
1'' |
¾'' |
½'' |
½'' |
½'' |
1 ½'' |
1 ½'' |
||||||
|
TAP0.800 |
780 |
1915 |
600 |
1400 |
555 |
65 |
355 |
970 |
1585 |
225 |
1715 |
170 |
|
1'' |
¾'' |
½'' |
½'' |
½'' |
1 ½'' |
1 ½'' |
||||||
|
TAP0.1000 |
990 |
1915 |
830 |
1750 |
555 |
65 |
355 |
970 |
1585 |
225 |
1715 |
207 |
|
1'' |
¾'' |
½'' |
½'' |
½'' |
1 ½'' |
1 ½'' |
||||||
|
TAP0.1500 |
1440 |
1915 |
1580 |
2500 |
555 |
65 |
355 |
970 |
1585 |
225 |
1715 |
294 |
|
1'' |
¾'' |
½'' |
½'' |
½'' |
1 ½'' |
1 ½'' |
||||||

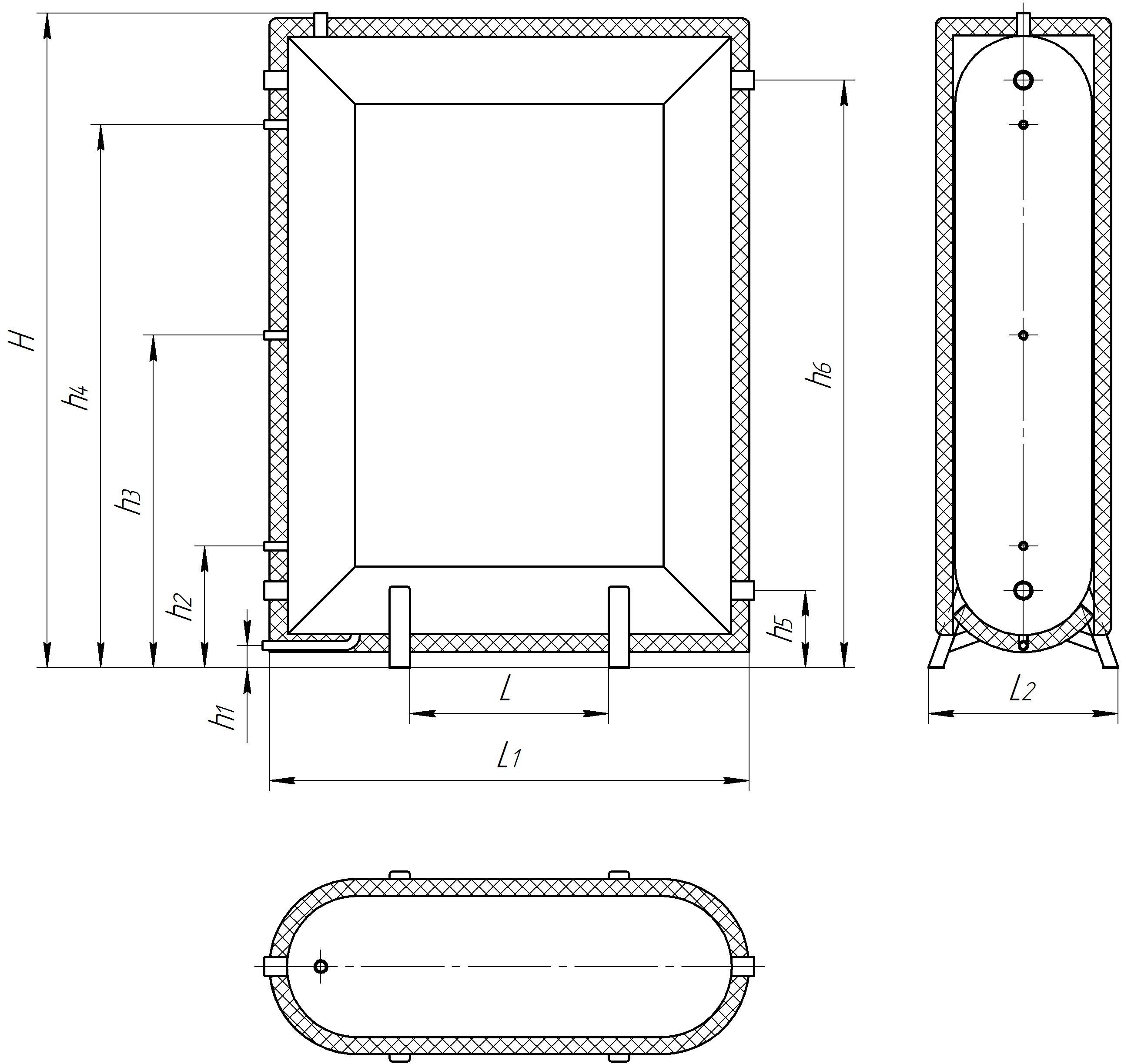

H - connection pipe for the safety group;
h1 - a pipe for draining the coolant;
h2 - h4 - temperature measurement nozzles;
h5 - h6 - supply and return pipes.
This is equipment that accumulates excess heat in the heating system and returns it to the system as needed. Heat accumulators ensure that the boiler operates at nominal modes, with the most efficient fuel combustion, and the durability of the heating system increases. Installing a heat accumulator increases the operating time of the heating system on one fuel load. This equipment balances the temperature in the heated room and protects the boiler from overheating. Heat accumulators are connected between the boiler and the heating system.
Flat heat accumulators - are flat tanks. The volume of heat accumulators:200-1500 л.
Flat heat accumulators provide for the possibility of installing a stainless steel heat exchanger (upper and lower). It is possible to place the coolant inlet and outlet pipes under0°, 180°</notranslate.
