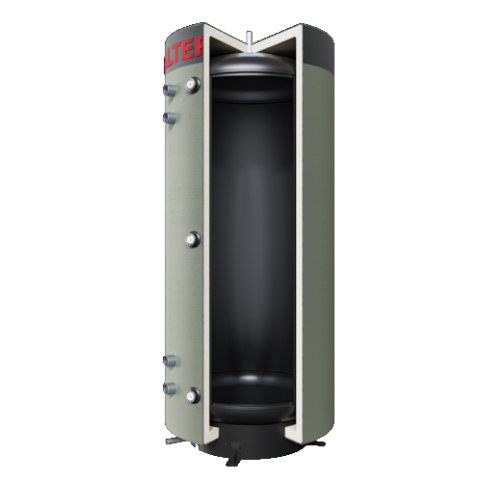

Round heat accumulator without heat exchanger

Customer Reviews: (0)

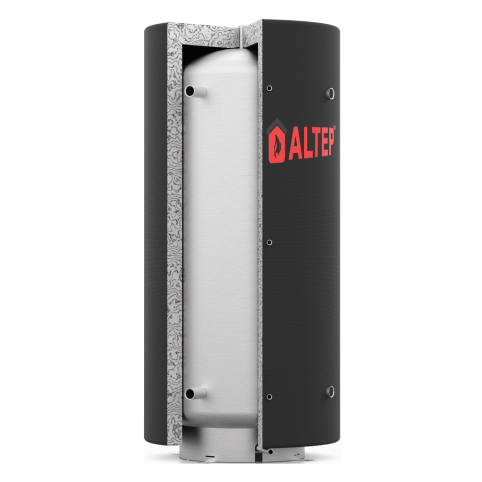

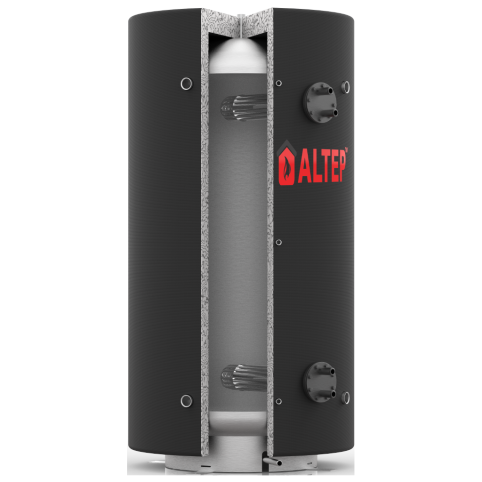

Round heat accumulator without heat exchanger - [2]

Round heat accumulator without heat exchanger

Customer Reviews: (0)

This is equipment that accumulates excess heat from a heat-generating device (boiler, solar collectors, etc.) in the form of a hot coolant reserve and returns it to the heating system when the boiler stops working. The installation of a heat accumulator increases the operating time of the heating system on one fuel load, and the operation of a solid fuel boiler with such a device at high temperatures saves fuel, extends its service life and facilitates maintenance.

High-quality materials - steel up to 5 mm thick, high-quality insulation;
High quality welds;
Possibility to choose the angle of placement of the nozzles;
Convenient, easy-to-clean cover;
High working pressure;

Metal thickness

up to 5 mm

Volume

200-10000л

EFFICIENCY

from 93%

Warranty

2 years

specifications

Description

Instructions PDF

Reviews (0)

Heat accumulators without heat exchangers

The version of the design	V_tank, л	Dimensions, mm				Connecting dimensions, mm								Weight (without water), kg
The version of the design	V_tank, л	Н	Ød	ØD	ØD1	h₁	h₂	h₃	h₄	h₅	h₆	h₇	h₈	Weight (without water), kg
The version of the design	V_tank, л	Dimensions, mm				Connecting dimensions, mm								Weight (without water), kg
The version of the design	V_tank, л	Н	Ød	ØD	ØD1	h₁	h₂	h₃	h₄	h₅	h₆	h₇	h₈	Weight (without water), kg
TA0.200	200	1840	325	400	500	60	230	360	1500	1630	230	930	1630	78
TA0.200	200	1''	325	400	500	¾''	1 ½''	1 ½''	1 ½''	1 ½''	½''	½''	½''	78
TA0.320	320	1885	400	500	600	50	250	380	1520	1650	250	950	1655	100
TA0.320	320	1''	400	500	600	¾''	1 ½''	1 ½''	1 ½''	1 ½''	½''	½''	½''	100
TA0.500	480	1935	450	600	710	65	285	415	1555	1685	285	985	1685	124
TA0.500	480	1''	450	600	710	¾''	1 ½''	1 ½''	1 ½''	1 ½''	½''	½''	½''	124
TA0.800	780	2000	600	750	860	65	315	445	1585	1715	315	1015	1715	160
TA0.800	780	1''	600	750	860	¾''	1 ½''	1 ½''	1 ½''	1 ½''	½''	½''	½''	160
TA0.1000	990	2045	700	850	960	70	340	470	1610	1740	340	1040	1740	185
TA0.1000	990	1''	700	850	960	¾''	1 ½''	1 ½''	1 ½''	1 ½''	½''	½''	½''	185
TA0.1500	1440	2125	850	1000	1100	85	390	520	1660	1790	390	1090	1790	226
TA0.1500	1440	1''	850	1000	1100	¾''	1 ½''	1 ½''	1 ½''	1 ½''	½''	½''	½''	226
TA0.2000	2050	2150	1000	1200	1400	90	435	565	1605	1735	435	1085	1735	288
TA0.2000	2050	1''	1000	1200	1400	¾''	2''	2''	2''	2''	½''	½''	½''	288
TA0.3000	2890	2340	1150	1400	1600	100	480	610	1750	1880	480	1180	1750	420
TA0.3000	2890	1''	1150	1400	1600	¾''	2''	2''	2''	2''	½''	½''	½''	420
TA0.4000	3875	2395	1300	1600	1800	80	500	630	1770	1900	500	1200	1900	502
TA0.4000	3875	1''	1300	1600	1800	¾''	2''	2''	2''	2''	½''	½''	½''	502
TA0.5000	4880	2895	1300	1600	1800	80	500	630	2270	2400	500	1450	2400	580
TA0.5000	4880	1''	1300	1600	1800	¾''	2''	2''	2''	2''	½''	½''	½''	580
TA0.6000	5850	3395	1300	1600	1800	80	530	680	2720	2870	530	1700	2870	660
TA0.6000	5850	1''	1300	1600	1800	¾''	3''	3''	3''	3"	½''	½''	½''	660
TA0.7000	6850	3895	1300	1600	1800	80	530	680	3220	3370	530	2000	3370	740
TA0.7000	6850	1''	1300	1600	1800	¾''	3''	3''	3"	3"	½''	½''	½''	740
TA0.10000	9850	4015	1550	1900	2100	75	585	735	3275	3425	585	1955	3425	910
TA0.10000	9850	1''	1550	1900	2100	¾''	3''	3''	3"	3"	½''	½''	½''	910

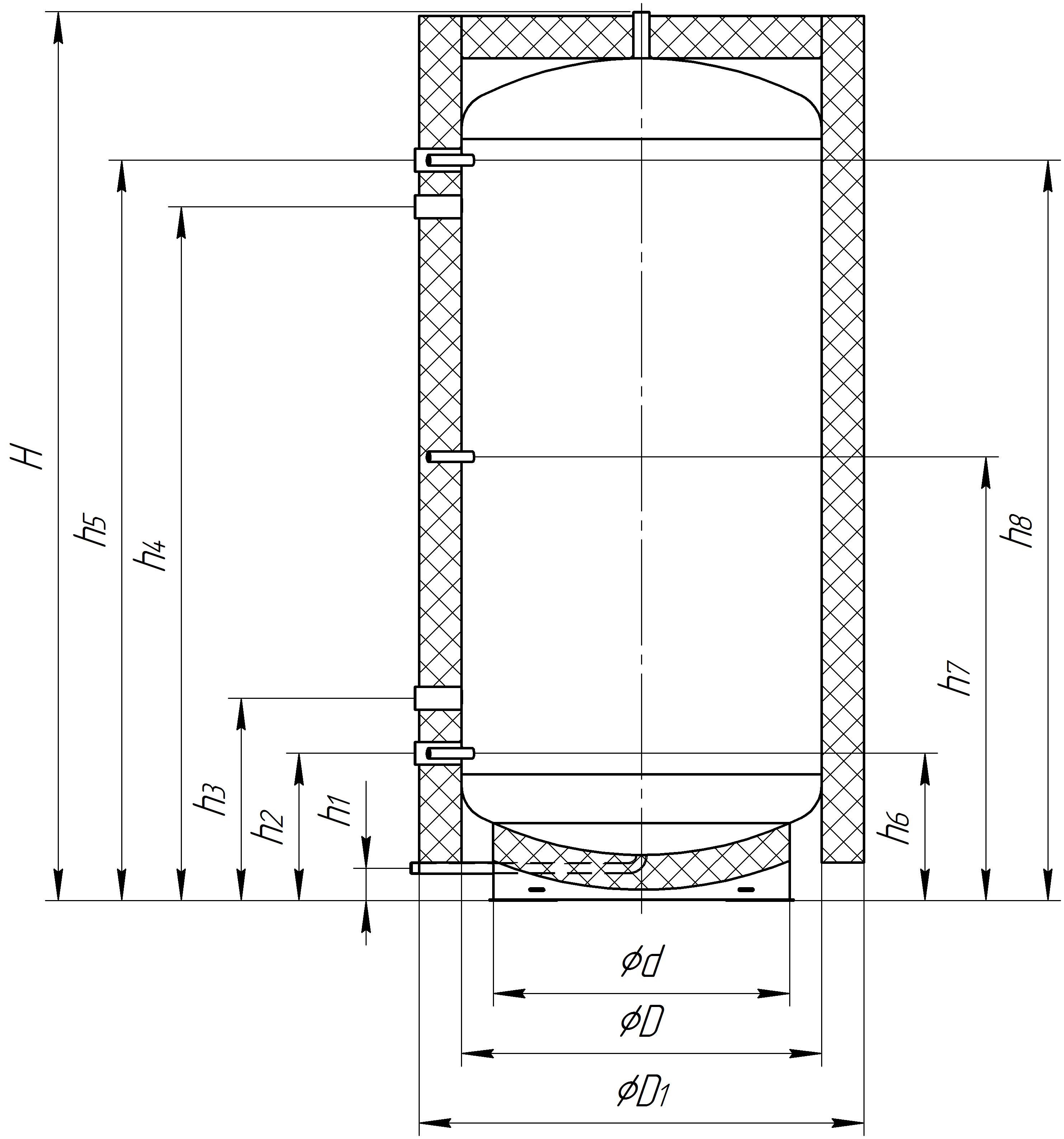

H is the connection pipe of the security group;
h₁ - coolant drain pipe;
h₂ - h₅ - supply and return pipes;
h₆- h₈ - temperature measurement nozzles.

The version of the design	V_tank, л	Dimensions, mm				Connecting dimensions, mm						Weight (without water), kg
		Н	Ød	ØD	ØD1	h₁	h₂	h₃	h₄	h₅	h₆
The version of the design	V_tank, л	Dimensions, mm				Connecting dimensions, mm						Weight (without water), kg
		Н	Ød	ØD	ØD1	h₁	h₂	h₃	h₄	h₅	h₆
TA0.200 90° and 180°</notranslate	200	1840	325	400	600	230	1630	60	230	930	1630	78
		1''				1 ½''	1 ½''	¾''	½''	½''	½''
TA0.320 90° and 180°</notranslate	320	1885	400	500	700	250	1650	50	250	950	1650	100
		1''				1 ½''	1 ½''	¾''	½''	½''	½''
TA0.500 90° and 180°</notranslate	480	1940	450	600	800	285	1685	65	285	985	1685	124
		1''				1 ½''	1 ½''	¾''	½''	½''	½''
TA0.800 90° and 180°</notranslate	780	2000	600	750	950	315	1715	65	315	1015	1715	160
		1''				1 ½''	1 ½''	¾''	½''	½''	½''
TA0.1000 90° and 180°</notranslate	990	2045	700	850	1050	340	1740	70	340	1040	1740	185
		1''				1 ½''	1 ½''	¾''	½''	½''	½''
TA0.1500 90° and 180°</notranslate	1440	2125	850	1000	1200	390	1790	85	390	1090	1790	226
		1''				1 ½''	1 ½''	¾''	½''	½''	½''
TA0.2000 90° and 180°</notranslate	2050	2150	1000	1200	1400	435	1735	90	435	1085	1735	288
		1''				2''	2''	¾''	½''	½''	½''
TA0.3000 90° and 180°</notranslate	2890	2340	1150	1400	1600	480	1880	100	480	1180	1880	420
		1''				2''	2''	¾''	½''	½''	½''
TA0.4000 90° and 180°</notranslate	3875	2395	1300	1600	1800	500	1900	80	500	1200	1900	502
		1''				2''	2''	¾''	½''	½''	½''
TA0.5000 90° and 180°</notranslate	4880	2895	1300	1600	1800	500	2400	80	500	1450	2400	580
		1''				2''	2''	¾''	½''	½''	½''
TA0.6000 90° and 180°</notranslate	5850	3395	1300	1600	1800	530	2870	80	530	1700	2870	660
		1''				3''	3''	¾''	½''	½''	½''
TA0.7000 90° and 180°	6850	3895	1300	1600	1800	530	3370	80	530	2000	3370	740
		1''				3''	3''	¾''	½''	½''	½''
TA0.10000 90° and 180°</notranslate	9850	4015	1550	1900	2100	585	3425	75	585	1955	3425	910
		1''				3''	3''	¾''	½''	½''	½''

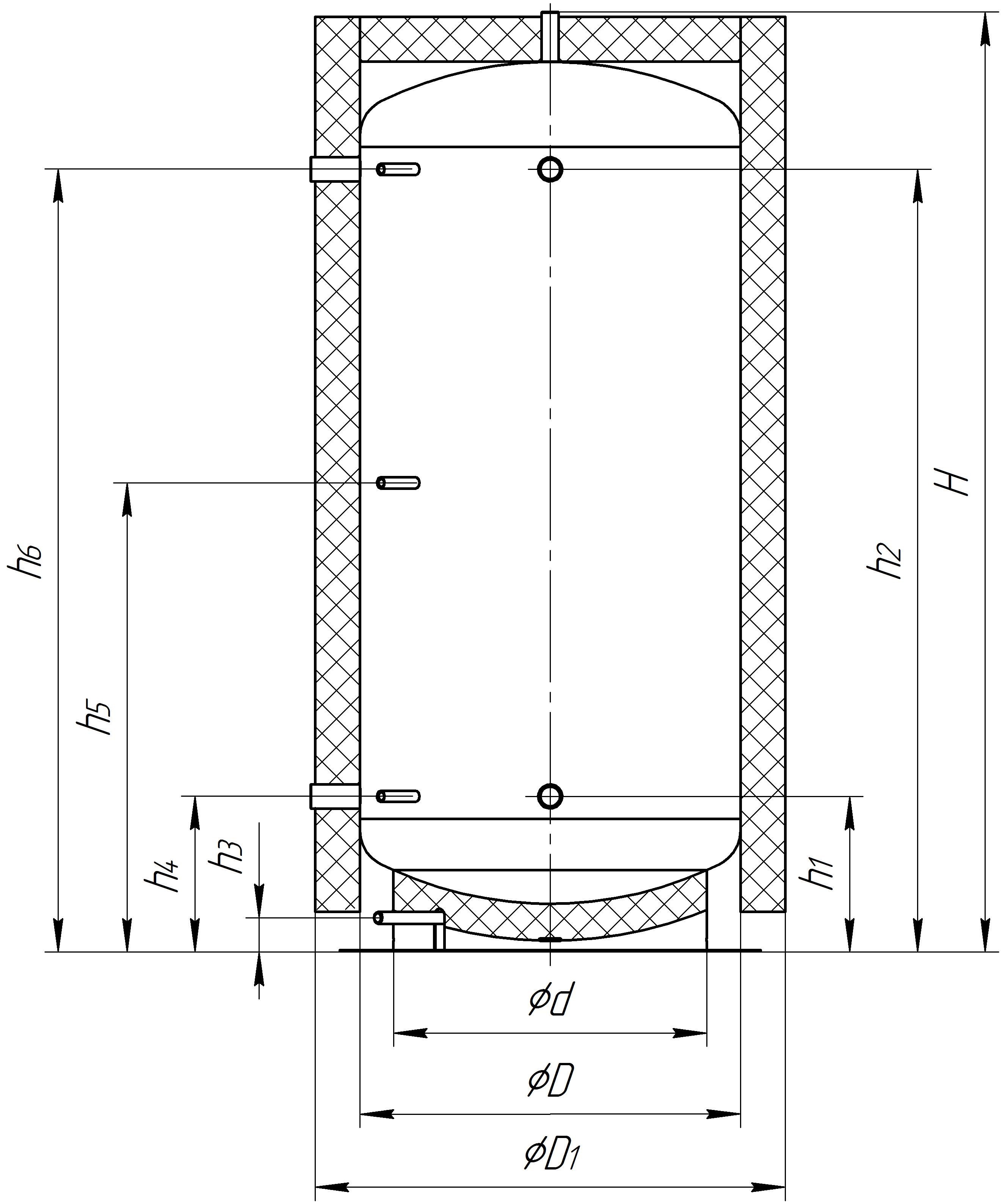

H is the connection pipe of the security group;
h₁, h₂ - supply and return pipes;
h₃ - a pipe for draining the coolant;
h₄- h₆ - temperature measurement nozzles.

This is equipment that accumulates excess heat in the heating system and returns it to the system as needed. Heat accumulators ensure that the boiler operates at rated conditions, with the most efficient fuel combustion, and increases the durability of the heating system. The installation of a heat accumulator increases the operating time of the heating system on a single fuel load. This equipment balances the temperature in the heated room and protects the boiler from overheating. Heat accumulators are connected between the boiler and the heating system.

Round heat accumulators - are cylindrical tanks. The company produces heat accumulatorswith a volume of 200-10000 liters.

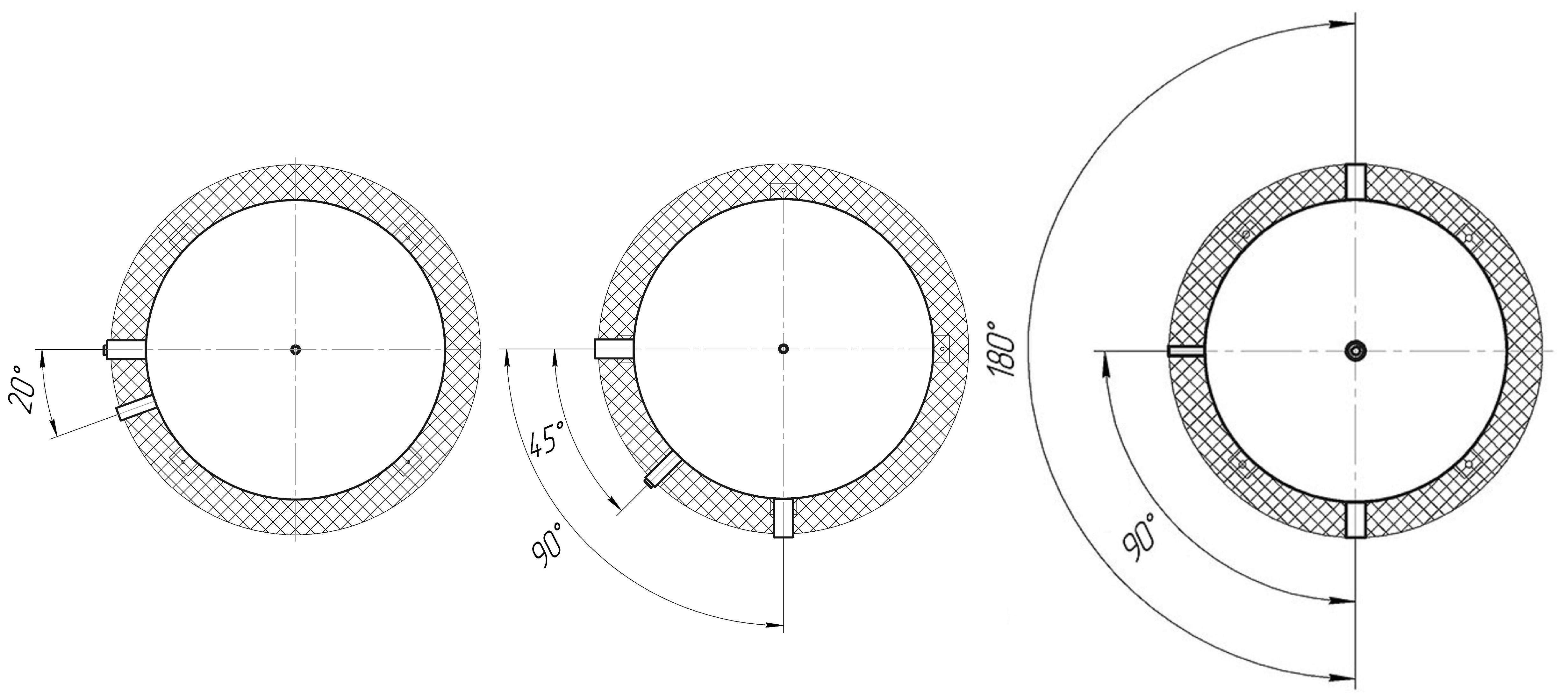

Round heat accumulators provide for the possibility of installing a heat exchanger (upper and lower) made of stainless or black steel.0°, 90°, 180°.

Instructions for Round heat accumulator without heat exchanger

Connection diagram
