Boiler for solid fuel Altep A Pellets

Name: Altep Pellets A
Brand: Altep
SKU: 48

Customer Reviews: (0)

Boiler for solid fuel Altep A Pellets

Customer Reviews: (0)

Class 5 boileris a modern design,which corresponds toof the CE certificate!

This is security and evidence that the product complies with European standards, including ecology, protection health and safetylabor!

The boiler material is high quality steel, 5mm thick;
Insulated doors with double insulation - for safe operation and minimization of heat loss;
It is equipped with a set of all necessary tools for maintenance;
Does not require a large area for installation;
Easy to maintain;

EFFICIENCY

from-91%

Power

20-30 kW

Fuel

Pellet

The period between fuel loading

8-24 h

Auto-ignition

Automatic fuel supply

Warranty

3 years

Metal thickness

6 mm

specifications

Dimensions

Description

Reviews (0)

Parameter	Unit of measurement	Norm for the Pellets boiler
Nominal heat output (power) of the boiler	kW	10	15	20	25	30	40
Minimum heat output (power) of the boiler	kW	3	4,5	6	7,5	9	10,5
Range of heat output (power) of the boiler	kW	45202	4,5-15	6,0-20	7,5-25	11202	10,5-40
Heat exchange surface area of the boiler	м²	1,4	45078	2	2,4	2,9	44988
Recommended area of heated premises¹⁾	м²	125	185	250	310	350	430
Fuel tank capacity²⁾	kg	117	146	146	146	195	228
Fuel consumption at rated power³⁾	kg/h	2,1	3,3	4,3	5,5	6,5	8,7
Boiler operating time on one hopper load³⁾	hours	59	44	33	26	30	26
Efficiency factor, not less than	%</notranslate	≈ 91,7-94,2	≈ 91,7-94,2	≈ 91,7-94,2	≈ 91,7-94,2	≈ 91,7-94,2	≈ 91,7-94,2
Nominal (maximum operating) water pressure	MPa	0,15	0,15	0,15	0,15	0,15	0,15
The required flue gas exhaust	Pa.	23-30	23-30	23-30	23-30	23-30	23-30
Flue gas temperature at the boiler outlet
for the rated power	°C	80-120	80-120	80-120	80-120	80-120	80-120
for minimum power requirements	°C	60-90	60-90	60-90	60-90	60-90	60-90
Flue gas emissions
for the rated power	g/s	6,4	9,8	13,1	16,5	19,2	23,7
for minimum power requirements	g/s	1,9	3	3,9	5	6,4	7,6
Water temperature min / max	°C	65/80	65/80	65/80	65/80	65/80	65/80
Recommended minimum return water temperature	°C	58	58	58	58	58	58
Temperature control range	°C	45-85	45-85	45-85	45-85	45-85	45-85
Boiler weight without water	kg	≈320	≈ 340	≈391	≈ 406	≈ 467	≈ 509
Water capacity of the boiler	л	84	106	114	121	141	165
Resistance to water flow through the boiler	bar	0,2	0,2	0,2	0,2	0,2	0,2

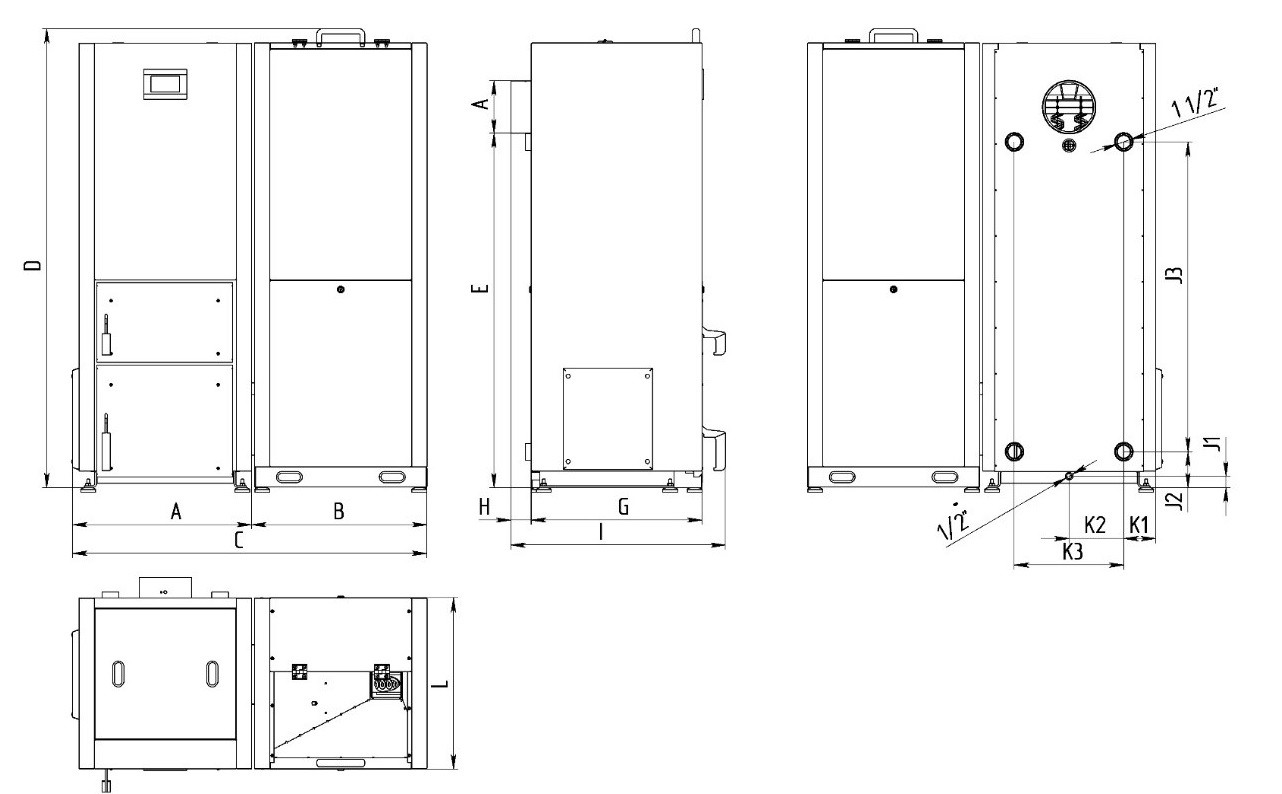

Overall dimensions of the boiler
А	mm	559	559	609	659	759	759
B	mm	596	596	596	596	786	786
С	mm	1155	1155	1205	1255	1555	1555
D⁴⁾	mm	1425	1575	1575	1575	1575	1575
E	mm	1088	1238	1238	1238	1238	1238
F	mm	159	159	178	178	178	178
G	mm	580	580	580	580	580	660
H	mm	70	70	70	70	70	70
I	mm	720	720	720	720	720	800
J1	mm	35	35	35	35	35	35
J2	mm	122	122	122	122	122	122
J3	mm	1024	1174	1174	1174	1174	1174
K1	mm	108	108	108	108	108	108
K2	mm	161	161	186	211	261	261
K3	mm	322	322	372	422	522	522
L	mm	580	580	580	580	580	660
Recommended chimney parameters
cross-sectional area	cm²	196	196	256	256	256	256
inner diameter	mm	160	160	180	180	180	180
height (minimum allowable)	м	5	5	5	6	6	6
Diameter of the fitting for the safety valve (DN)	mm	15	15	15	15	15	15
Required actuation pressure of the safety valve	MPa	0,2	0,2	0,2	0,2	0,2	0,2
Maximum permissible ambient temperature	°C	50	50	50	50	50	50

Designed for heatingresidential buildings andindustrial buildings in theautomatic mode.

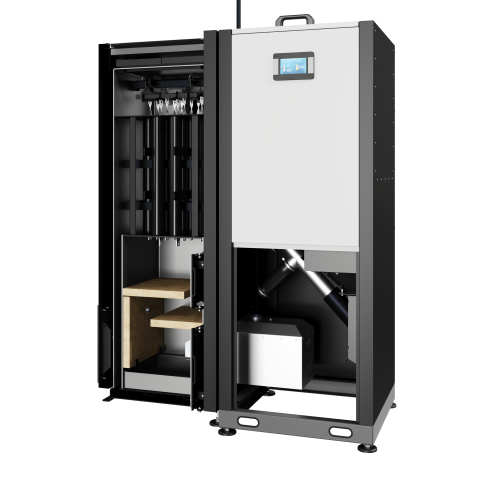

Fuel for boiler operationis transported automatically byby means of a screw devicefeed from the fuel bunker,which is located next to theboiler.
Fuel for boilers of the typeAltep Pellets A are wood pellets,that meet the requirementsDIN plus standard.
