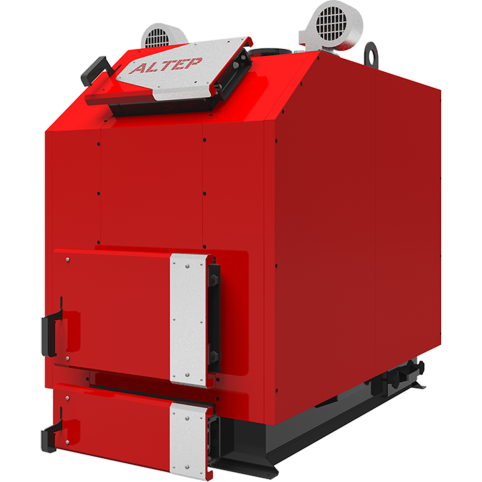

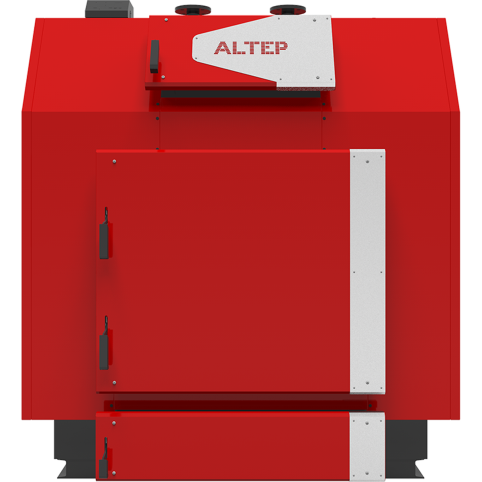

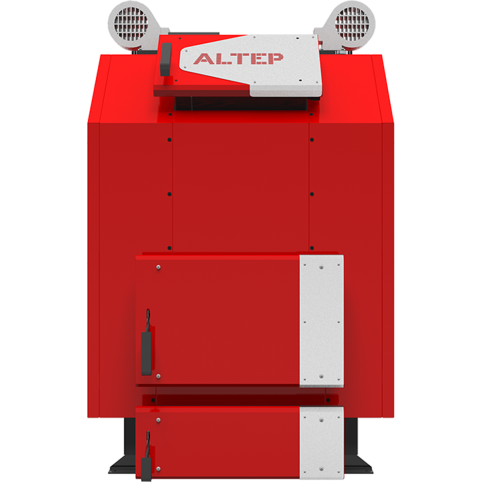

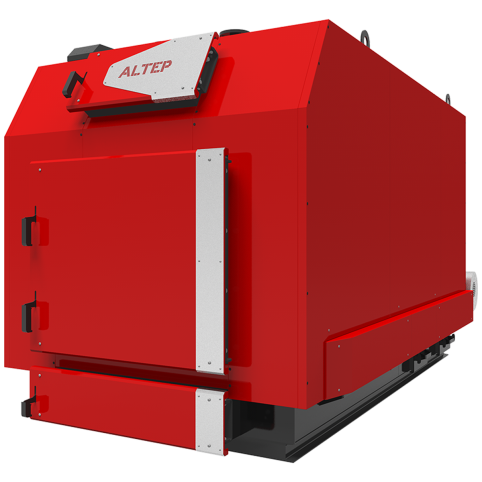

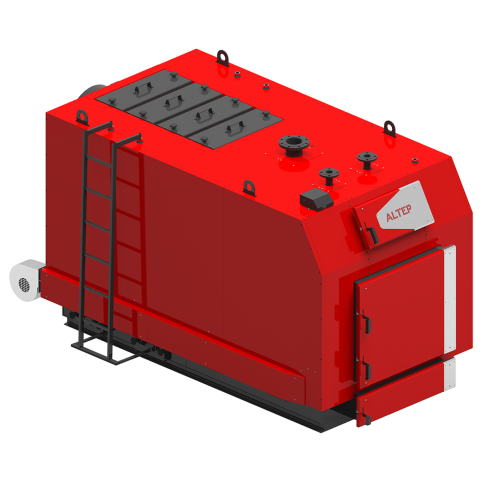

Industrial solid fuel boiler TRIO UNI Plus

Customer Reviews: (0)

Industrial solid fuel boiler TRIO UNI Plus

Customer Reviews: (0)

Universal long-burning boilers with a water-filled grate, compact dimensions and the ability to operate both with manual loading and automatic fuel supply. The convection part of the heat exchanger is located behind the furnace for convenient fuel loading.

The boilers are available in three versions:

TRIO UNI Plus (kit) - a control unit withPID
TRIO UNI Plus (manual kit) - with a manual loading kit, adapted for installation of the control unit withPID
TRIO UNI Plus BK - a control unit with aPIDwith side inspection windows (80-600 kW).

Easy installation of a pellet burner for automatic fuel supply - without changing the boiler design;
Boiler material - high quality steel, 6-8 mm thick;
Large furnace chamber, which allows the use of large firewood as fuel;
Versatility - the ability to operate the boiler in the modes of manual fuel loading and automatic feeding;
Insulated doors with double insulation - for safe operation and minimization of heat loss;
Compact size;

Door

70 mm double insulation

Metal thickness

6 mm

EFFICIENCY

from 86%

specifications

Dimensions

Description

Reviews (0)

Parameter.	Unit.	Norm for the TRIO UNI PLUS boiler
Rated power of the boiler	kW	80	97	150	200	250	300	400	500	600
Heat exchanger area	м2	8	10	15	18,5	27	31	37	45	52
Firebox dimensions
Depth	mm	750	850	900	1000	1150	1150	1350	1500	1500
Volume	dm3	430	570	790	1100	1480	1680	2060	3050	3050
Water capacity of the boiler	л	265	325	455	545	750	840	970	1200	1400
Weight of the boiler without water	kg	950	1060	1540	1900	2470	2700	3150	4010	4300
Fuel gas temperature	°C	100-180	100-180	100-180	100-180	100-180	100-180	100-180	100-180	100-180
Recommended minimum water temperature	°C	58	58	58	58	58	58	58	58	58
Maximum water temperature	°C	85	85	85	85	85	85	85	85	85
Nominal operating water pressure	MPa	0,2	0,2	0,2	0,2	0,2	0,2	0,2	0,2	0,2
Electricity consumption, no more than	W	170	170	205	205	205	315	485	805	1110
Connecting (external) dimensions of the hog	mm	248	298	298	348	398	448	498	548	548
Diameter of mains water connections (DN)	mm	65(FL)	65(FL)	80(FL)	100(FL)	100(FL)	100(FL)	125(FL)	125(FL)	125(FL)
Recommended chimney parameters
Cross-sectional area	cm2	452	660	660	908	1194	1520	1885	2290	2290
Inner diameter	mm	250	300	300	350	400	450	500	550	550
Height (minimum allowable)	м	7	7	7	9	10	12	13	14	16
Diameter of the pipe for the safety valve (DN)	mm	20	25	50(FL)	50(FL)	50(FL)	50(FL)	2×50(FL)	2×50(FL)	2×50(FL)
Diameter of the boiler water drain connection (DN)	mm	20	25	25	25	25	25	25	25	25

Overall dimensions of the boiler TRIO Uni/Trio Uni Plus 80-97 kW

Overall dimensions of the TRIO Uni/Trio Uni Plus boiler 150-500 kW

Overall dimensions of the TRIO Uni/Trio Uni Plus boiler 600 kW

Parameter	Unit of measurement	Norm for the TRIO Uni Plus boiler
Overall dimensions of the boiler	kW	80	97	150	200	250	300	400	500	600
B	mm	840	940	1040	1160	1320	1370	1420	1670	1790
H	mm	1540	1560	1800	1900	1900	2000	2010	2160	1970
H1	mm	1320	1340	1540	1640	1640	1740	1740	1840	1840
H2	mm	1080	1075	1265	1315	1290	1365	1340	1415	1415
H3	mm	285	285	355	355	355	355	355	355	355
L	mm	1900	2030	2250	2350	2660	2740	3200	3350	3590
L1	mm	1525	1625	1835	1935	2245	2325	2685	2835	3065

Solid fuel boilers of the typeTRIO UNI Plus - long-term combustion. They are designed for heating domestic, industrial and other premises equipped with a central heating system, for preparing and supplying heat for technological needs. Power range:80-600 kW.

In the basic configuration, the boiler can be operated in the mode of manual loading of solid fuel. To switch the boiler to the automatic fuel supply mode, it is necessary to additionally install a door for the pellet burner, the burner itself and the fuel hopper. The boiler is equipped with a water grate. The multi-channel air supply system ensures long-lasting and even combustion of fuel from top to bottom. This advantage allows the use of different types of fuel, different sizes and fractions.

A special feature of the model is the placement of the heat exchanger in the rear part of the boiler, which significantly expands the power range. The vertical placement of the heat exchanger shelves minimizes the accumulation of unburned fuel particles, which allows the boiler to be cleaned once a week. Inspection doors are located on the top and on both sides of the boiler, which provides convenient maintenance of the equipment.

Boilers of the seriesTRIO UNI Plus are equipped with a fan and a control unit to automate the operation of the equipment.
