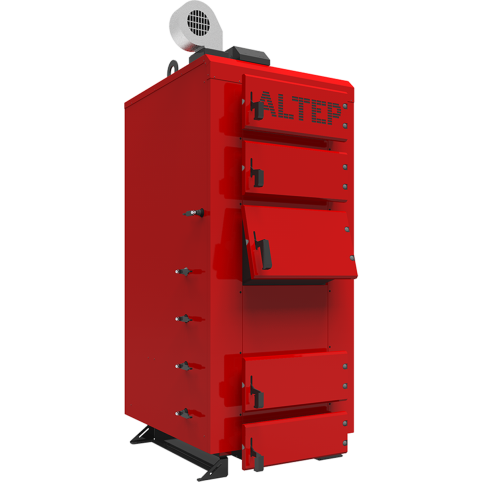

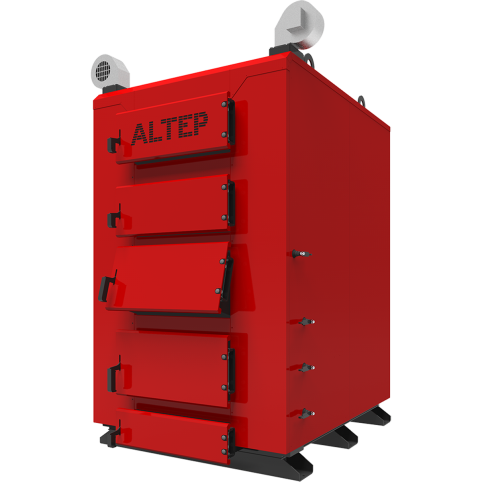

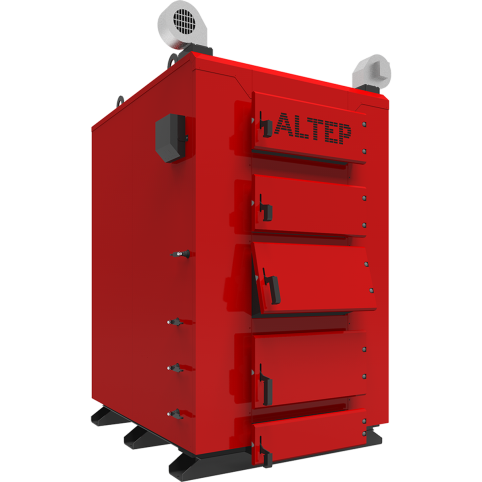

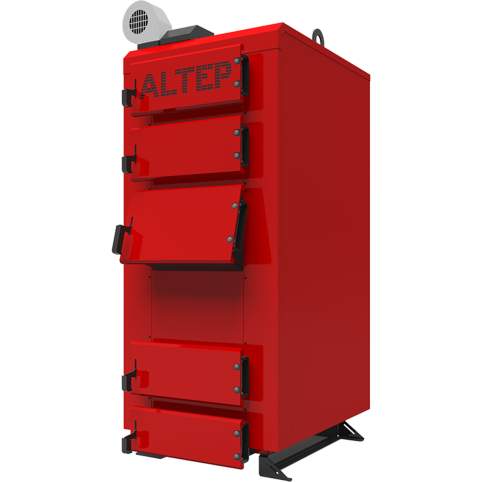

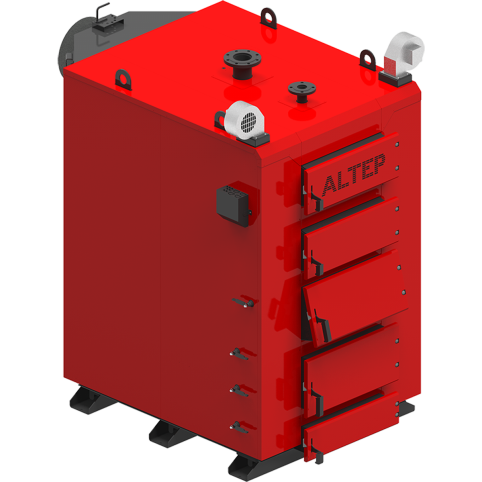

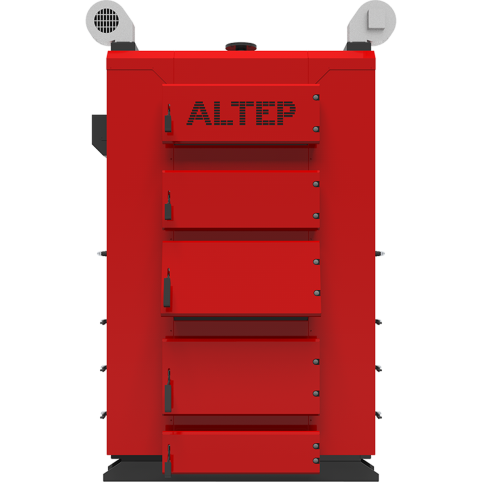

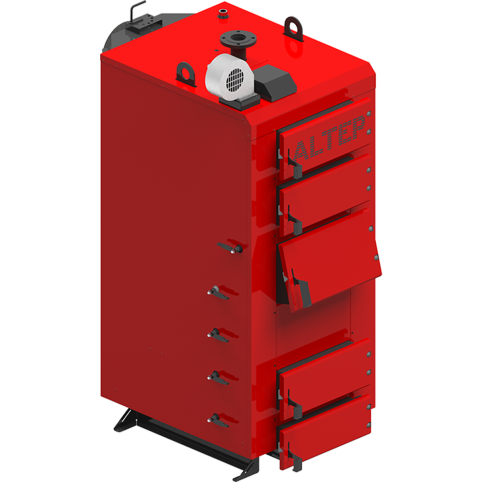

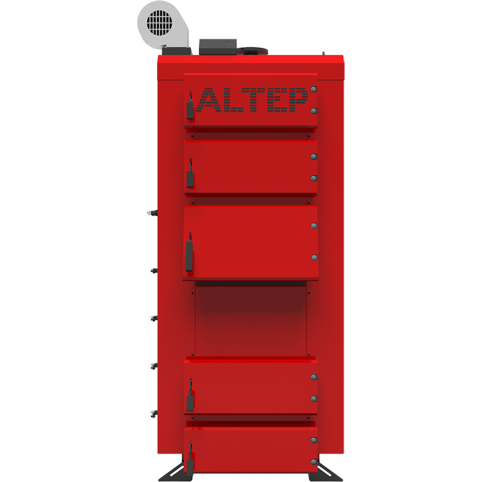

Industrial solid fuel boiler DUO PLUS
Industrial solid fuel boiler DUO PLUS
The flagship model of boilers, proven by time and many satisfied users. Long-burning boilers made of 6 mm thick stainless steel with a multi-channel air supply system are capable of operating on all known types of solid fuels.
The boilers are available in two versions:
- DUO Plus - a control unit with PID is installed
- DUO - adapted for installation of a control unit with PID
- The boiler material is high-quality steel, 6 mm thick;
- Large furnace chamber;
- Large loading doors, installed at an angle, which allow the use of various types of fuel: both bulk type and solid fuel, large in size;
- Insulated doors with double insulation for safe operation and minimization of heat loss;
- It is equipped with a set of all necessary tools for maintenance;
- Adapted for installation of a mechanical draft regulator (15-38 kW);
- Possibility to adjust the air supply, depending on the type of fuel;
| Parameter | Unit. | Norm for the KT-2E (KT-2E-M) boiler | ||||
| Rated power of the boiler | kW | 95 | 120 | 150 | 200 | 250 |
| Heat exchanger area | м2 | 7,8 | 9,8 | 11,3 | 15,1 | 18,9 |
| Weight of the boiler without water | kg | 1050 | 1200 | 1300 | 1800 | 2150 |
| Fuel gas temperature | °C | 100-180 | 100-180 | 100-180 | 100-180 | 100-180 |
| Recommended minimum water temperature | °C | 58 | 58 | 58 | 58 | 58 |
| Maximum water temperature | °C | 85 | 85 | 85 | 85 | 85 |
| Nominal operating water pressure | MPa | 0,20 | 0,20 | 0,20 | 0,20 | 0,20 |
| Electricity consumption, no more than | W | 250 | 410 | 205 | 205 | 315 |
| Connecting (external) dimensions of the hog | mm | 299 | 299 | 299 | 348 | 398 |
| Diameter of mains water connections (DN) | mm | Fl.65 | Fl.80 | Fl.80 | Fl.100 | Fl.100 |
| Diameter of the pipe for the safety valve (DN) | mm | 25 | 25 | Fl.50 | Fl.50 | Fl.50 |
| Safety valve actuation pressure | MPa | 0,25 | 0,25 | 0,25 | 0,25 | 0,25 |
| Firebox dimensions | Unit. |
Norm for the KT-2E (KT-2E-M) boiler | ||||
| depth | mm | 825 | 955 | 1050 | 1050 | 1350 |
| volume | dm3 | 431 | 558 | 651 | 863 | 1090 |
| Water capacity of the boiler | л | 398 | 473 | 530 | 700 | 850 |
| height (minimum allowable) | м | 7 | 9 | 10 | 11 | 11 |
Overall dimensions of the Altep DUO PLUS boiler (KT-2E) 95-120 kW
_1.jpg)
Overall dimensions of the boiler Altep DUO PLUS (KT-2E) 150 kW
_2.jpg)
Overall dimensions of the Altep DUO PLUS boiler (KT-2E) 200-250 kW
_3.jpg)
| Power | Unit of measurement | 95 | 120 | 150 | 200 | 250 | |
| Overall dimensions of the boiler | B | mm | 920 | 920 | 980 | 1400 | 1400 |
| H | mm | 2270 | 2305 | 2260 | 2350 | 2350 | |
| H1 | mm | 2000 | 2000 | 2000 | 2090 | 2090 | |
| H2 | mm | 1790 | 1790 | 1790 | 1855 | 1830 | |
| H3 | mm | 270 | 280 | 280 | 210 | 210 | |
| L | mm | 1560 | 1690 | 1790 | 2050 | 2320 | |
| L1 | mm | 1150 | 1280 | 1380 | 1390 | 1690 | |
| D | mm | 299 | 299 | 299 | 348 | 398 | |
| Connecting (outer diameter) dimensions of the hog | mm | 299 | 299 | 299 | 348 | 398 | |
| Diameter of the direct and return water pipes (DN) | mm | Fl.65 | Fl.80 | Fl.80 | Fl.100 | Fl.100 | |
| Recommended parameters of the home automation system | |||||||
| cross-sectional area | cm2 | 702 | 702 | 702 | 962 | 1256 | |
| inner diameter | mm | 300 | 300 | 300 | 350 | 400 | |
| height (minimum allowable) | м | 7 | 9 | 10 | 11 | 11 | |
| Diameter of the fitting for the safety valve (DN) | mm | 25 | 25 | Fl.50 | Fl.50 | Fl.50 | |
| Required actuation pressure of the safety valve | MPa | 0,25 | 0,25 | 0,25 | 0,25 | 0,25 | |
Solid fuel boilers of the typeDUO / DUO Plus - is a flagship model that has been popular on the market for many years. The quality of the boiler has been tested for over5000 consumers who are satisfied with the equipment. These are long-burning boilers of the upper type, designed for heating domestic, industrial and other premises in which the central heating system is equipped. Power range:15-250 kW.
The convection part of the boiler consists of a steel multi-pass heat exchanger that heats up quickly, providing the most efficient heat transfer. The multi-channel air supply system ensures long-lasting and even combustion of fuel from top to bottom. This advantage makes it possible to use different types of fuel, different sizes and fractions.
The inner part of the heat exchanger is made of high-quality steel with a thickness of6 mm, which ensures a high level of weld quality.
Boilers of the seriesDUO Plus are equipped with a fan and a control unit to automate the boiler operation. The control unit controls the operation of the fan and the heating system pump. The boilers are adapted for installation of a mechanical draft regulator.
DUO Plus solid fuel boilers have a large furnace capacity for their power, which makes it possible to operate the boiler for a long time on a single fuel load.
