Gas boiler GAS P
![Gas boiler GAS P - [2]](https://altepworld.com/storage/products/images/big/BtFzUT2Pc7DkXNVoKiQfSoDmIOkTzxGDXFqBat83.jpg "Gas boiler GAS P - [2]")
![Gas boiler GAS P - [3]](https://altepworld.com/storage/products/images/big/K3i2AGS2unNNCka7OYQTczaxXmtCSnesTqZFdfrD.png "Gas boiler GAS P - [3]")
![Gas boiler GAS P - [4]](https://altepworld.com/storage/products/images/big/peHVKNFlOBDuexZUIFyBRaLb3XB0zdXuLqGhfABY.png "Gas boiler GAS P - [4]")
Gas boiler GAS P
- They do not depend on electricity.
- Automated work.
- Small and compact.
- Access to the automation and burner through the front door.
- European components.
| Rated heat output | kW | 8 | 10 | 12 | 16 |
| Natural gas consumption at rated power . ±10%</notranslate | m³/h | 0,84 | 1,14 | 1,37 | 1,82 |
| Maximum heating water outlet temperature | °C | 90+5 | 90+5 | 90+5 | 90+5 |
| Nominal gas pressure | pas | 1274 | 1274 | 1274 | 1274 |
| Pressure in the heating system, not more than | bar | 2 | 2 | 2 | 2 |
| Water pressure in the DHW system, not more than | bar | 6 | 6 | 6 | 6 |
| Outlet heating water temperature control range | °C | 50-90 | 50-90 | 50-90 | 50-90 |
| Efficiency, not less than | %</notranslate | 92 | 92 | 92 | 92 |
| Corrected sound power level, no more than | dB | 40 | 40 | 40 | 40 |
| Nominal temperature of combustion products, not less than | °C | 110 | 110 | 110 | 110 |
| Diameters of the connection pipes: | |||||
| by gas | inch | 1/2 | 1/2 | 1/2 | 1/2 |
| heating circuit | inch | 1/2 | 1/2 | 1/2 | 2 |
| hot water systems | inch | 1/2 | 1/2 | 1/2 | |
| Diameter of the flue gas outlet | mm | 120 | 120 | 120 | 120 |
| Content in dry undiluted combustion products: CO₂, not more than | % Ob. | 0,05 | 0,05 | 0,05 | 0,05 |
| NOₓ, no more than | mg/m³ | 240 | 240 | 240 | 240 |
| Service life, not less than | years | 15 | 15 | 15 | 15 |
| Mass. | kg | 46 | 55(56,5) | 61(63) | 65(71) |
| Overall dimensions | |||||
| Height | mm | 699 | 699 | 699 | 795 |
| Width | mm | 330 | 330 | 330 | 470 |
| Depth | mm | 570 | 640 | 710 | 482 |
| Cross section of the smoke exhaust part pipes | |||||
| Internal | mm | 130х106 | 130х106 | 212х106 | 212х106 |
| External | mm | 231х237 | 231х237 | 231х307 | 231х307 |
Gas-P chimney gas boilers are modern economical boilers. They are designed for heating houses and premises up to 300 m2. The equipment provides water heating by burning natural gas.

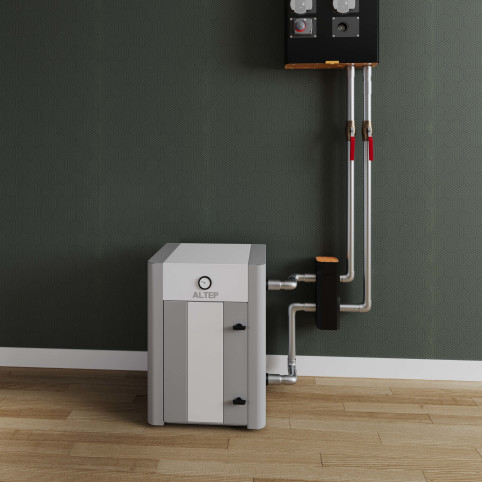

These are natural draft boilers. For gas exhaust, they use an overhead chimney and a conventional hood. Therefore, they are convenient to install in houses where there was previously a heating system with an upper or rear chimney, or in new buildings.

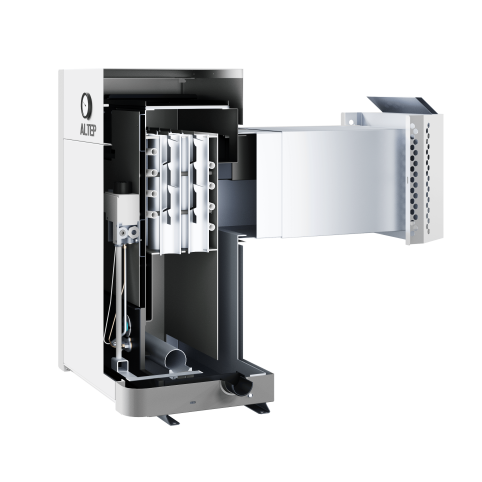

The boilers are made of high-quality steel, 3 mm thick. This ensures a long life cycle and reliable operation of the equipment. Compact dimensions and modern design allow the boiler to be installed in any room. The equipment is equipped with automation and a burner made in Italy. It is easy to set up and maintain. The boilers operate in fully automatic mode. They do not depend on electricity. The boiler design provides for the presence of a front door for easy access to the automation and burner.
