Solid fuel boiler Compact

Customer Reviews: (0)

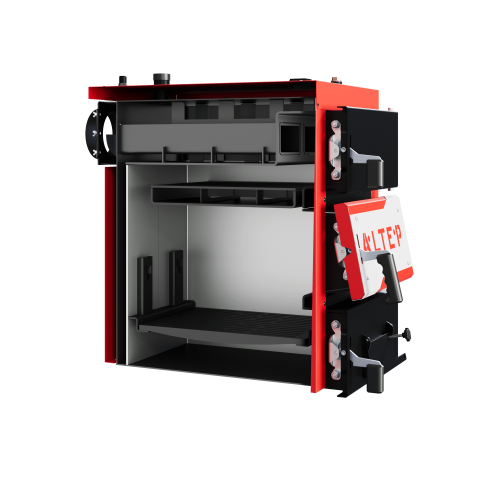

The convection part of the boiler consists of a steel heat exchanger. With its compact size, the boiler has the deepest furnace chamber (as for boilers of this class), which allows the use of large firewood. The design of the boiler provides for a combined heat exchanger of the shelf-fire tube type. This provides the most efficient heat exchange, increases the boiler efficiency, and saves heating costs.
The boiler is equipped with a cast-iron grate, which ensures high-temperature combustion of fuel. At the same time, the fuel burns completely, without any charcoal residue.

  • The boiler material is high quality steel, 6 mm thick;
  • Large furnace chamber with compact dimensions of the boiler;
  • It is equipped with a set of all necessary tools for maintenance;
  • Does not require a large installation area;
  • Easy to maintain;
EFFICIENCY
from-85%
Fuel
firewood, wood waste, coal, sawdust and peat briquettes, peat
Warranty
3 years
Metal thickness
6 mm
Volumetric loading chamber
The period between fuel loads
6 h
specifications
Dimensions
Description
Reviews (0)



Parameter Unit. Altep Compact
Rated boiler output (on coal) kW 15 20 25 35 50 75
Heat exchange surface area m2 1.6 2.1 2.5 3.2 4.4 6.3
Efficiency, not less % 85
Firebox dimensions
depth mm 540 540 540 540 700 850
width mm 360 360 360 360 400 560
height mm 340 430 530 650 850 820
volume dm3 66 83 103 126 238 390
Water capacity of the boiler l 62 72 80 85 208 288
Weight of the boiler without water kg 230 245 266 300 520 725
Required draft of flue gases Pa 23–30
Flue gas temperature at boiler outlet °C 100–180
Recommended minimum water temperature °C 58
Maximum water temperature °C 85
Nominal (max operating) water pressure MPa 0.15   0.20
Test water pressure, not more MPa 0.30
Overall boiler dimensions
B mm 520 520 520 520 590 750
H mm 900 990 1090 1310 1845 1860
H1 mm 850 945 1045 1240 1745 1745
H2 mm 719 783 883 1099 1567 1567
H3 mm 92 92 92 102 112 172
L mm 1020 1020 1020 1025 1280 1430
L1 mm 930 930 930 940 1200 1350
Loading door dimen

Parameter Unit. Altep Compact
Overall dimensions of the boiler kW 15 20 25 35 50 75
B mm 520 520 520 520 590 750
H mm 900 990 1090 1310 1845 1860
H1 mm 850 945 1045 1240 1745 1745
H2 mm 719 783 883 1099 1567 1567
H3 mm 92 92 92 102 112 172
L mm 1020 1020 1020 1025 1280 1430
L1 mm 930 930 930 940 1200 1350
Dimensions of the loading
door		 height, mm 190 190 190 190 320 320
width, mm 360 360 360 360 360 480

The boiler is made of high quality steel. The boiler is designed with a large steel heat exchanger (as for boilers of this class), the area of which provides the most efficient heat transfer and significantly saves fuel consumption. The heat exchanger is made of seamless, continuously drawn pipes. The fuel is loaded manually.
Boilers of the typeCompactcan be additionally equipped with a fan and a control unit to automate the combustion process while maintaining the set temperature of the coolant.
